Widely Usage Industrial 95% 99% Textile Machinery Alumina Ceramic Eyelets

Product Description

Product Description

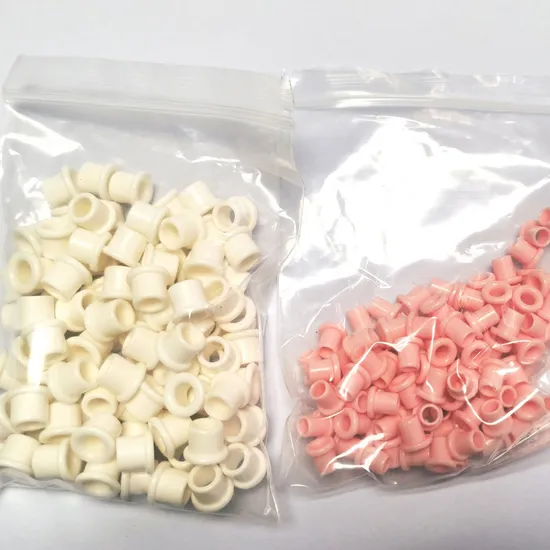

Ceramic eyelet is applicable for wire or silk rolling of various winding machines and textile machinery. It is made of precise ceramic and polished up to Ra0.2, high hardness and smooth surface enable the enameled wire free from hurt during surface sliding.
The ceramic eyelet is used to set less (friction is also less) location of pressure right. For cost reduction, according to using a request, smoothness polishing handicraft is allotted being (0.8 throw Ra) roughly, is throw (Ra accurate 0.4), surpasses essence throwing (Ra0.2). Be that single face is super-accurate at the same time as mark throw and two-sided super-accurate throw. Specification of China eye many, select and use specification listing in common use in support a customer the day after tomorrow now, also may demand making to order according to the customer.
The alumina ceramic eyelet(zirconia ceramic eyelet) is one of our feature products with a competitive price.

Brand Name:	ZTF
Material:	99%AL2O3 or titanium oxide
Application:	Ceramic guide for wire
Polish:	Fine Polish degree Ra0.2
Hardness:	≥HRA85
Volume Density:	≥3.60
Bending Strength:	≥280 Mpa
Basic Tolerance:	+/-1%
Color:	Pink, White, Light Pink, Black, Dark Red
Molding Method:	LOW PRESSURE IN JECTION

Well Polished Low Friction High Purity Alumina Textile Ceramic Eyelet
The main features of textile ceramic eyelet
1. Low yarn tensions without any yarn damage
2. Long service life on both special yarns and raw materials with aggressive additives
3. Highest yarn cleanliness without any fault on silk occasion
3. Excellent mechanical strength, fracture toughness, and bending strength
4. Exceptional wear resistance and hardness better than metal ones
5. Good insulation, free of static electricity, resistant magnetic
6. Superb thermal conductivity coefficient and thermal shock property
7. Corrosion resistance in harsh working conditions
8. Excellent thermal shock resistance and good thermal stability
9. Nox-toxic, healthy material, eco-friendly material
10. Meet with RoHS, REACH regulation completely
The specification of textile Ceramic eyelet
Material option Alumina(Al2O3), Zirconia (ZrO2), Titania (TiO2)
Forming methods Dry pressed, Ceramic injection molding, Hot pressed
Specification OD can be from 1 to 50mm
Precision processing Precision Grinding, Polishing, Lapping,
Key parameters Fine grade roughness to be 0.4mm, diamond-like polish to be Ra0.1
Surface quality Free of cracks, foreign contamination, and mirror surface
Why Us: USD 1000 million sales every year; Excellent quality and Competitive price; Widely professional exporting experience all over the world; Well-trained and experienced staff will answer all your inquiries professional in any language; Good after-sales service offered. Culture Culture:
We stick to the principle of the culture are Sustainability and Six High Standard: high-level management, high efficiency, high-qualified staffs, high-level skills, high-quality products, and high-speed developing sales. The best design includes consideration for the environment. That's why we're committed to making sure our processes, products, and people follow safe and environmentally-friendly practices. Other side, We prefer to bring the newest, most fashionable, high quality and healthiest products for our customer.

Service:
ZHENGTAIFENG METAL PRODUCT LIMITED products features complete presale, selling and after-sales service system, and provides detailed management and service for clients in terms of distribution channels. and provides professional and systematic advice for distributors.
Supplementary Service:
We have export license to assist our customers by handling export procedures. We have our team to control quality, arrange shipment, combine container (combine different kinds of items in one container from our factory to another). As we always care your thinking, we will be your professional partner to source your right products in China.

Suggestion:
Please kindly check the packages after you receive the goods, if you have any problem, please get in touch with us as soon as possible .
Contact us:
More products are available in ZHENGTAIFENG. They are all in competitive price and of good quality, just go to our company page to see the details.
If you find or not find the products you need, please have no hesitate to let us know.
FAQ:

1.Q:Are you a factory or trading company?

A:We are a professional manufacturer. Welcome to visit us, we'Il pick you up at GuangZhou airport or Shenzhen airport.

2.Q:Where is your factory located?

A:Our factory is located in Huizhou, Guangdong Province, next to Dongguan. Warmly welcome domestic and foreign customers to visit!

3.Q:How can I get a sample to test your quality?

A:Most samples are free except special products. New clients are expected to pay the courier.

4.Q:How about your payment terms?

A:T/T in advence or one month after shipment

5.Q:When can you deliver the goods?

A:If stock available, we can deliver it within 2 days. If not, that would be 5-7 working days after getting the deposit.

6.Q:Does your company accept OEM or ODM production?

A:Yes, we are experienced in operating OEM & ODM, just send the detailed requirements.

---
