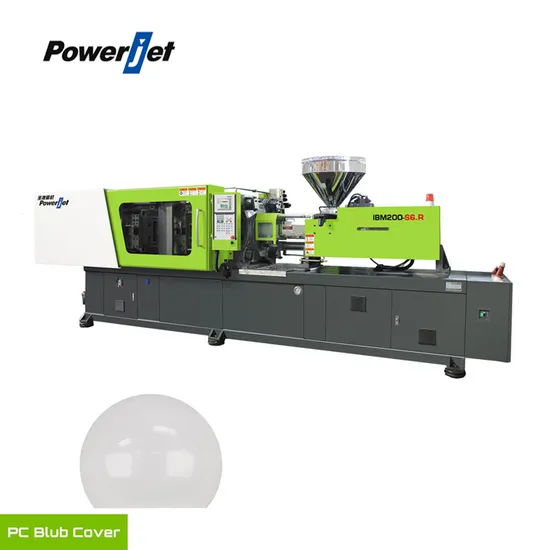

Powerjet LED Bulb PC Cover Making Rotary Injection Blow Molding Machine

Product Description

Powerjet plastic led bulb cover mould rotary injection blow molding machine

Rotary Injection Blow Molding Machine
IBM-R Series Rotary Injection Blow Molding Machine with a rotary mold system for good surface finishing products like: LED bulb cover, cosmetics bottle etc.
Clamping Force - 2000~3300(KN)
Driving System - Hydraulic
Motor Type - Servo
Applications - LED Bulb, Cosmetics Packaging & Bottle

	DESCRIPION	UNIT	IBM200R
LAMPING UNIT	Clamping force	KN	2000
	Opening stroke	mm	490
	Max.datlight	mm	1190
	Platen size	mm	775 x 755
	Space between bars	mm	510 x 510
	Max.mold height	mm	700
	Min.mold height	mm	550
	Max. Rotary Center Distance	mm	605
	Min. Rotary Center Distance	KN	300
INJECTION UNIT	Screw diameter	mm	46
	Screw L/D Ratio	L/D	18
	Injection Pressure	MPa	230
	Shot volume	cm3	407
	Shot weight (ps)	g	362
	Injection rate	g/s	119
	Screw stroke	mm	245
	Screw speed	rpm	170
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	18.5
	Heater power	KW	11.5
GENERAL	Oil tank capacity	L	340
	Machine weight	T	6.3
	Machine dimensions (L*W*H)	m	6.4x1.4x2.1

Company Profile
Our Services & Strength
1:Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
2:Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
3:Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
4:Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
5:Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Please feel free to consult us for more information.
Thanks~

---
