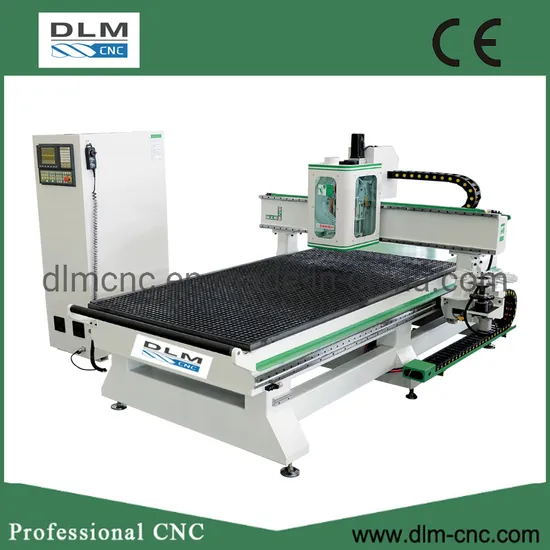

1325 Linear Type Atc CNC Woodworking High Precision Machinery Tool

Product Description

CNC Woodworking Cutting Machinery Tool
NA-series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.

The standard configuration of linear Type ATC Machine NA-48 is:

Spindle Power	9kw Chinese air cooling spindle/ HSD /Hiteco
Controller	Syntec / NC studio control system
Motor	750w Delta servo motor / Yaskawa servo motor
Gear Reducer	Taiwan planetary gear reducer
Table	double layer PVC vacuum suction table
Vacuum Pump	5.5KW Chinese Becker pump
Tool Magazine	ISO-30 8-slot linear plastic steel tool magazine with tool setting blocks
Software	Router-8
Transmission	Precision helical rack and pinion drive & Z axis direct drive
Ball Screw	Taiwan linear rail
Guide Rail	Taiwan AMT
Table Size	1220x2440mm
Max. Traveling Size (X/Y/Z)	2540x1320x200mm
Max. Workpiece Height	150mm
Dimensions (X/Y/Z)	3500x1800x2000mm
Net Weight	1800kg

Upgrade:
Positioning air cylinder
Boring aggregate
Pushing device
Protection enclosure
Laser light screen
Spindle cover
Full-body cover
HSK-63F spindle
8-slot carousel plastic steel tool magazine
Movable vacuum suction chucks
+/-90°spindle horizontal processing design
OSAI controller
12KW air cooling spindle
Aluminum alloy tool magazine
Loading & unloading roller table
floating table

Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.

---
