The Extremely Heavy-Duty Sewing Machine Motor

Product Description

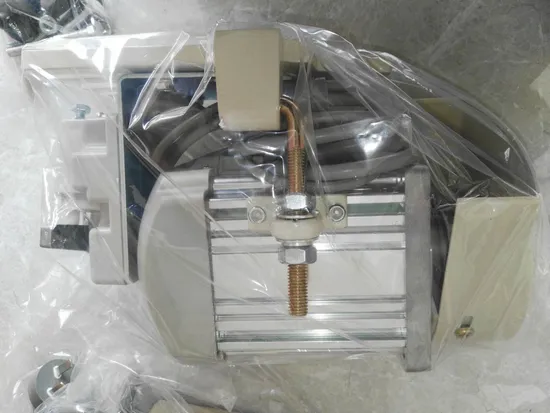

SSFT-1100B:BRUSHLESS SERVO MOTOR
For very special heavy duty sewing applications , we use SSFT-1100B electronic servo motor producing an awesome 1100 watts of power, 1.65 hp. To our knowledge, the most powerful sewing machine motor ! Using SSFT-1100B high torque motor on heavy thick sewing applications completely eliminates the need for a now obsolete, "Speed Reducer". This electronic servo motors are designed to be mounted in the normal standard under the table location.
Main Features 1.Remarkable energy-saving:The motor starts instantly, stops instantly, has no -loading running, and it could save 60%-80% power at least comparing with the clutch motor. 2.Speed Set: The changeable range for the motor speed is 100rpm-4500rpm.The speed change is based on 100r separated up and down. The maximum speed could be setted or locked when you step the pad to the end! 3.Super width voltage work: AC80V-140V/AC180V-260V normal work. 4.One motor, much function: It could be instead of all the clutch motors within 750W. 5.Fast and Low starting sewing set: It could be fast and low starting sewing set by starting instantly.
6.Balance output power: Its output power matches with need of sewing machine automatically, economizing power.
7.Stepless change speed: The stepless change speed is controlled by foot in the operation.
8.Low speed, high torque: the speed of 600rpm starts, and the output power is 3Nm at least.
9.No maintenance, long life: Brushless design, no parts damage.
10.Simple structure: small volume, light weight, and the net weight is just 9kg.

The Parameter:

OUTPUT POWER	VOLTAGE	CYCLES	SPEED	MAX.TORQUE
1100W	220V	50Hz	0-2500RPM	9N.m
1100W	110V	60Hz	0-2500RPM	9N.m

---
