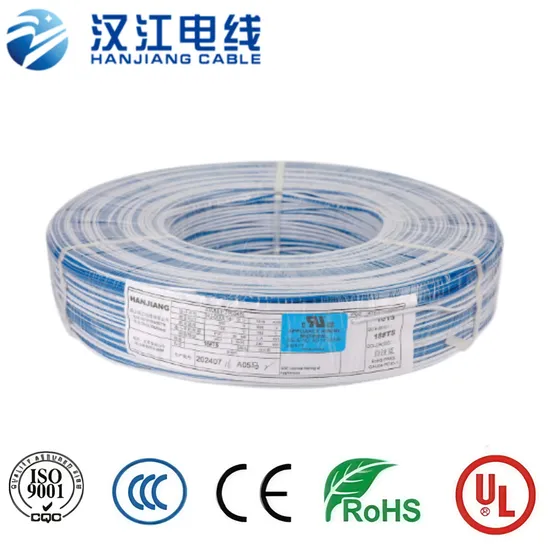

UL 1015 PVC Insulation Hook-up Wire for Internal Wiring of Electronic and Electrical Equipment

Product Description

Product Description

CONDUCTOR			INSULATION		MAX. COND. RESISTANCE (Ω/km, 20ºC, DC)	DIELECTRIC STRENGTH (VAC, 1min)
AWG	CONSTRUCTION (NO./mm)	DIA. (mm)	THICKNESS (mm)	O.D. (mm)
30	7/0.10	0.30	0.80	1.90	381	2000
28	7/0.127	0.38	0.81	2.00	239	2000
26	7/0.16	0.48	0.81	2.10	150	2000
24	11/0.16	0.61	0.82	2.25	94.2	2000
22	17/0.16	0.76	0.82	2.40	59.4	2000
20	26/0.16	0.94	0.81	2.55	36.7	2000
18	41/0.16	1.18	0.81	2.80	23.2	2000
16	26/0.254	1.49	0.81	3.10	14.6	2000
14	41/0.254	1.88	0.81	3.50	8.96	2000
12	65/0.254	2.36	0.82	4.00	5.64	2000
10	7/15/0.254	3.42	0.82	5.05	3.54	2000
8	7/24/0.254	3.99	1.21	6.40	2.23	2000
6	7/38/0.254	4.75	1.86	8.50	1.40	2000
4	12/35/0.254	5.98	2.00	10.00	0.90	2000
2	19/35/0.254	8.49	1.76	12.00	0.56	2000

Application: For general purpose internal wiring of appliance.
Rated tempereture: 105ºC
Rated voltage: 600V
Reference standard: UL758, UL1581, CSA C22.2NO.210.2
Constructure:
Stranded or solid conductor, tinned or bare copper conductor 30-2AWG.
PVC insulation, comply with RoHS environmentral standard.
Product character:
Uniform insulation thickness to ensure stripping and cutting.
Pass UL VW-1, CSA FT1 and JQA-F-Mark flame test.
Company Introduction
Founded in 2012 as KunshanHanJiang Cable CO.,Ltd., since its establishment, our company has been committed to providing supporting services to the global computer, communications, automotive, notebook, home appliances, transportation, medical and consumer electronics industries. It is an entity enterprise that integrates R&D and manufacturing.
Our company has passed product certifications of over ten countries, such as UL, CCC and obtained ISO 9001, IATF 16949 and other system certification.
Our company's main products are: USB cable, coaxial cable, halogen-free cable, automotive wire, EV wire and cable, robot flexible cable, drag chain cable and computer cable, etc.

Certifications
Cooperative Partners
Production Process
Packing
Transport
FAQ
Q:When can I get the price?
A:We usually respond within a day after receiving your email. If you want to get the price as soon as possible, please ask it in your email so we can reply to you first.
Q:Are you a manufacturer or trading company?
A:We are a manufacturer with over 10 years of experience.
Q:How can I get a sample?
A:You can place a sample order and we will provide the sample for free, but you need to pay for the shipping costs.
Q:What is your MOQ?
A:The MOQ depends on the cable type.
Q:When is your delivery time?
A:The delivery time is usually within 3 weeks after the customer places the order.
Q:Does your company accept OEM production?
A:Yes, our company accepts OEM production.

---
