Overview Quick Details
Place of Origin:Liaoning, China
Brand Name:GCAN
Model Number:USBCAN-II Pro
Product name:USBCAN-IIPro
Baud rate:5Kbps~1Mbps
operating system:WinXP,Win7,Win8,Win10
Software:ECANTools software test
working temperature range:-40℃~+85℃
Channel:Double channel
Max receiving data:14000 fps
Adapter for USB connection:USB 1.1, compatible with USB 2.0
ackaging & Delivery
Selling Units:Single item
Single package size: 21X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:
| Quantity(sets) | 1 - 500 | >500 |
| Est. Time(days) | 7 | To be negotiated
|
Product description

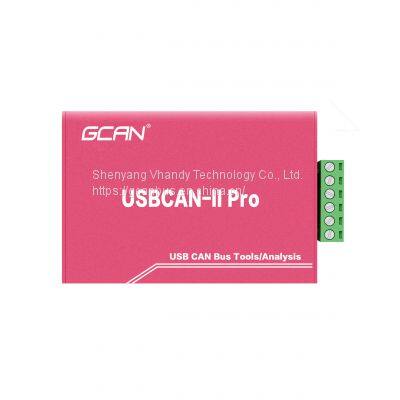

USBCAN-II Pro adapter is a debug or analysis tool with two CAN-Bus channel.Using this adapter,PC can quickly connect to CAN-Bus network through USB interface,and become a intelligent node of CAN-Bus to transmit/receive CAN-Bus data. A dapter comes with isolation,and can be used in different windows systems.Device driver,software and programming interfaces(VC,VB,Net,Delphi,Labview,C++Builder)exist for different operatin systems,so programs can easily access connected CAN bus.
Product features
1. Adapter for USB connection: USB 1.1, compatible with USB 2.0
|
2. USB voltage supply
|
3. Bit rates 1 Mbit/s Time stamp resolution 1 weis
|
4. Dimensions:(L)102mm * (W)63mm * (H)23mm
|
5. CAN-Bus connection via terminal
|
6. SJA1000 CAN controller
|
7. NXP PCA82C251 CAN transceiver
|
8. Support ECAN Tools software
|
9. Isolation:CAN connection up to 1500 V
|
10. Working temperature : -40 to 85 °C;
|
11. Support Windows XP/7/8/10 and linux X86 X64;
|
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
>>
