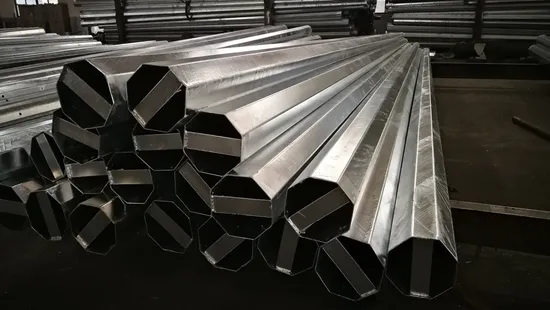

Gr 65 Power Transmission Pole 12m/40FT 800dan/8kn

US$100.00 1 Piece (MOQ)

Basic Info.

Model NO.

ESP-12

Certification

ISO

Materials

Steel

Standard

Style

Cable Tower

Structure

B Type

Steel Grade

Q235, Q355, Gr65

Zinc Thickness

100 Microns

Warranty

20 Years

Shape

Multi-Sideed

Transport Package

Cloth

Trademark

Origin

China

HS Code

730890

Production Capacity

5000

Product Description

Our Utility poles produced in accordance to ASCE/SEI 48-11, with a capacity reduction factor of 0.9 applied as per AS/NZS 7000.
- Pole to be galvanized 100μm
- penetration of circumferential welds to be 100%
- bottom of Longitudinal welds to be 100%, remained to be 75%
Inground type pole

Length(m)	5kN	12kN	16kN	24kN	32kN	40kN	60kN	80kN	100kN
9	√	√	√	√
10.5	√	√	√	√
11	√	√	√	√
12.5	√	√	√	√
14	√	√	√	√
15.5			√	√	√	√	√
17			√	√	√	√	√	√
18.5			√	√	√	√	√	√
20				√	√	√	√	√	√
22				√	√	√	√	√	√
24				√	√	√	√	√	√
26					√	√	√	√	√
28					√	√	√	√	√
30					√	√	√	√	√
32							√	√	√
34							√	√	√
36							√	√	√
38							√	√	√
40							√	√	√

Flange type pole

Length(m)	40kN	60kN	80kN	100kN	120kN	150kN	200kN
20	√	√	√	√	√	√	√
22	√	√	√	√	√	√	√
24	√	√	√	√	√	√	√
26	√	√	√	√	√	√	√
28	√	√	√	√	√	√	√
30	√	√	√	√	√	√	√
32		√	√	√	√	√	√
34		√	√	√	√	√	√
36		√	√	√	√	√	√
38		√	√	√	√	√	√
40		√	√	√	√	√	√
