Cbb65 Series AC Motor Run Capacitor

Product Description

Product description

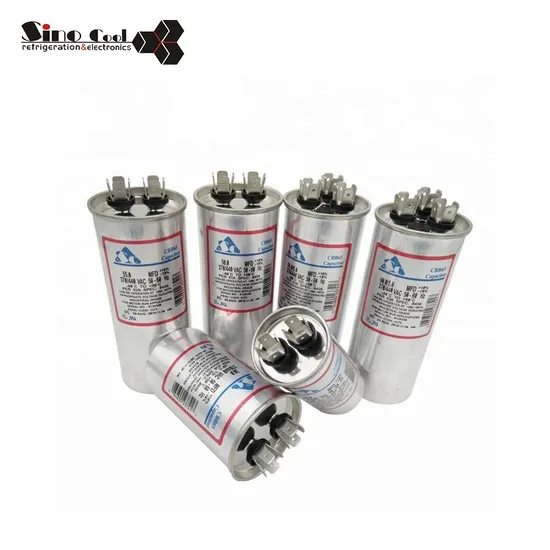

CBB65 metalized polypropylene AC capacitor
Features:
The capacitor has advantages of low dissipation,high insulation resistance ,good self-healing character,anti-striking current,strong over-carrier capacity and steady electric performance ,and reliable safety with inner anti-explosion devicemetc. It is applied in air conditioning,refrigerator,motor,compressor,it is helpful for motor's starting and running.
Technical Parameter
Ambient temperature: -40~+85 degree Ceisius
Rated Voltage: 150-500VAC
Capacitance Range: 2-100uF (2 poles) & 1+1 - 80+15uF ( 3 poles)
Test Voltage : T-T:2Un/2s T-C:2200VAC/2s
Dispiation Factor : Tan δ <= 0.0018 (1000HZ)
Capacitance Tolerance : ± 5%
Drawing
