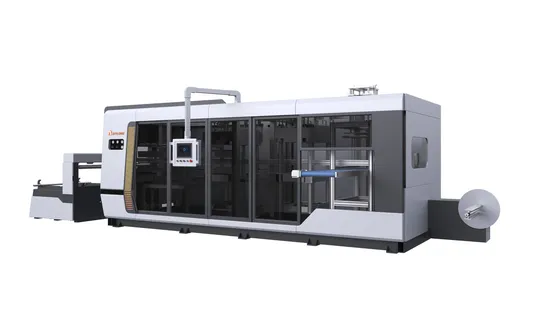

Disposable Take Away Food Box Making Machine for Food Packing

Product Description

Essential details
Processing Type:Plastic Thermoforming Machine Plastic Type:PVC, PS, PP, PET
Max.Forming Height(mm):120 mm Forming Width (mm):650 mm
Forming Length (mm):780 mm Production Speed(Cycles/min):10-35 mould/min
Video outgoing-inspection:Provided Machinery Test Report:Provided
Warranty of core components:1 Year Core Components:Motor
Air Pressure(MPa):0.6 MPa Sheet Thickness(mm):0.1 - 1.5 mm
Heating Power (kW):70 kW Air Comsumption(L/min):0.8 L/min
Water Comsumption(L/min):0.5 L/min Condition:New
Product Type:Fast Food Box Place of Origin:China
Brand Name:Wylong Voltage:380v/220v
Dimension(L*W*H):7500 * 2400 * 2200 mm Weight (T):9.6 T
Warranty:1 Year Applicable Industries:Hotels, Garment Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops
Key Selling Points:Easy to Operate Showroom Location:Egypt, Turkey, Germany, Viet Nam, Philippines, Brazil, Peru, Indonesia,
Pakistan, India, Mexico, Thailand, Argentina, Chile, Nigeria, Malaysia
automatic:PP/PLA/PS/PET/PVC max. forming area:780*650MM
max. forming depth:120mm, can be more forming pressure:0.5-0.8 Mpa
productivity:10-35 mould/min rated heading power:70kw
total weight:9.6 TON overall dimension:7500 * 2400 * 2200 mm
Power(W):80kw Weight:9500
Marketing Type:Ordinary Product
Supply Ability
Supply Ability
20 Set/Sets per Month Packaging & delivery
Packaging Details Stretchin film covered
Wooden pallets for easy loading
Port NingBo
Lead time:

Quantity(sets)	1 - 1	>1
Lead time (days)	40	To be negotiated

SPECIFICATIONS
Introduction
The multi-stations thermoforming machine is suitable to handle different materials, such as A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC and barrier material and to produce many items: trays, lids, fruits and vegetables boxes, flower pots, clamshells, nursery trays and plates.

It can make some products which unable to be made in one station thermoforminging machine, like for example: PLA products, plastic lids or containers which has holes, the packing containers (fruit box, egg trays) with body and cover connected etc.
Specification

Model	NUD 680/450
Sheet Materials	PP.PS.PET.PLA.PE
Sheet Thickness	0.2 - 2 mm
Forming Area	680 * 420 mm
Width of Sheet	400 - 690 mm
Forming Depth	125mm
Speed	15-30 moulds/min
Heating Power	70 kw
Total Installed Power	80 Kw
Motor Power	4kw x 4
Air Consumption	0.5-0.8 bar
Dimension	7500 * 2400 * 2200 mm
Weight	7500 kg

CONFIGURATION LIST

PARTS NAME	ORIGIN
Motor	China Brand
Motor Gear Box	China Brand
Inverter	Japan (Yaskawa)
Magnetic Valve of Forming	Japan (SMC)
Magnetic Valve	Airtac
Cylinder	Airtac
Feeding Servo Motor	Japan (Yaskawa)
Stacking Servo Motor	Japan (Yaskawa)
Voltage Regulating module	China Brand
Temperature module	China Brand
Heater	China Brand
PLC	Japan (Mitsubshi)
Touch screen	Japan (Mitsubshi)
Encoder	Japan (Mitsubshi)
Contactor	Schneider
Switch	Schneider
Breaker	Schneider

MACHINE PHOTOS
Products Range
EXHIBITIONS AND FAIRS
Company Profile
Zhejiang Wylong Machinery Co., Located in Ruian,Zhejiang Provicne ,is 500kms,away from Shanghai. with 20 years of machinery manufacturing and selling is Plastic sheet extruder,thermoforming machine ,and multi-station thermoforming machine With ISO 9001 Certification,advanced technology and equipment ,as well as the R&D ability of new products,our products are sold all over the world and enjoy a high reputation at home and abroad ,Since its establishment the company adheres to the principles of "scientific management,high quality and efficiency ","customer first and credibility commitment",we always take consumers as our first consideration ,we insist on providing high-quality products and services ,and sincerely welcome new and old friends from all walks of life to visit us and create a better future. pictures of sales cases
Certifications
QUESTIONS YOU MAY ASK
Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.

Q2: What is the production time?
Reply: Normally we need around 45 days.

Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.

Q4: Should the customer send the sample cups?
Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation.

Q5: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.

Q6: What is the capacity of the thermoforming machine?
Reply: Working 20 hrs/day, the capacity is 300,000-500,000 pcs/day. The accurate capacity depends on the size and material of the products.

Q7: How much space it needs for the thermoforming machine?
Reply: 5 meters in length (if need stacking machine, require another 3.5 meters), 2.5 meters in width.

Q8: What kinds of products can the thermoforming machine produce?
Reply: It can produce all kinds of disposible plastic cups, bowls, plates, boxes, yogurt cups, plant pots, food container, etc.

Q9: What material can be used in the thermoforming machine?
Reply: PP/PS/PVC/PET. Thickness 0.3-2mm.

Q10: What is the requirements of the machine for the electricity?
Reply: It needs three phase four wire. The copper core cable should be big than 25 mm³, aluminium core cable should be bigger than 50 mm³.

Q11: What is the requirements of the machine for the air?
Reply: The output volume of the compressed air should be higher than 2.4 mm³/min. The pressure should be higher than 6 kgs.

Q12: What is the requirements of the machine for the water?
Reply: The displacement of the water should be higher than 1.5 m³/min, and the pressure should be higher than 2kg. The temperature should be between 30°-50 °.

---
