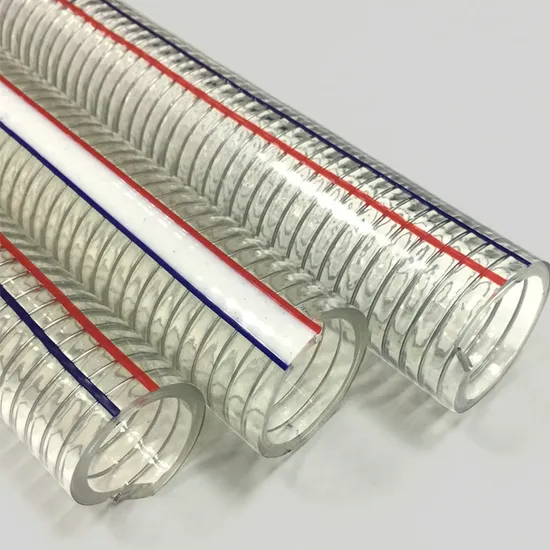

PVC Steel Wire Hose Top Quality 1 2 3 4 5 6 8 Inch Transparent Plastic Thunder Suction Pipe with Spiral Spring for Water Fluid Dust Mine

Product Description

PVC Steel Wire Hose Top Quality 1 2 3 4 5 6 8 inch Transparent Plastic Thunder Suction Pipe with Spiral Spring for Water Fluid Dust Mine

ID		OD	WP		BP		W/A	COIL
in	mm	mm	bar	psi	bar	psi	g/m	m
1/4	6	11	8	120	24	360	115	100
5/16	8	14	8	120	24	360	150	100
3/8	10	16	8	120	24	360	200	100
1/2	12	18	8	120	24	360	220	100
5/8	15	22	6	90	18	270	300	50
3/4	19	26	6	90	18	270	360	50
1	25	33	5	75	16	240	540	50
1-1/4	32	40	5	75	16	240	700	50
1-1/2	38	48	5	75	15	225	1000	50
2	50	62	5	75	15	225	1600	50
2-1/2	64	78	4	60	12	180	2500	30
3	76	90	4	60	12	180	3000	30
3-1/2	90	106	4	60	12	180	4000	20
4	102	118	4	60	12	180	4500	20
5	127	143	3	45	9	135	6000	10
6	152	168	2	30	6	90	7000	10
8	202	224	2	30	6	90	12000	10
10	254	276	2	30	6	90	20000	10

Q: What is your standard length per roll?
A: The standard length is 50m, we can also make any length as customers' requirement, like 10m/15m/20m/30m/50m/100m.
Q: What is the minimum and maximum size you can produce?
A: The minimum size is 1/4"-6mm, the maximum size is 10"-254mm.
Q: What is the working pressure of your steel wire hose?
A: The maximum working pressure of our steel wire hose is 8 bar.
Q: Is your steel wire hose UV resistant?
A: Yes, our steel wire hose is UV resistant.
Q: What is the service life of your steel wire hose?
A: The service life is 2-3 years, if it is well preserved.
Q: What is the MOQ of your steel wire hose?
A: We can accept orders of any quantity.
Q: Can you make customer logo on the hose and packaging?
A: Yes, we can make your logo on hose body and packaging and it is free.
Q: What quality guarantee you can supply?
A: We tested the quality each shift, once quality problem, we will replace our hose freely.

---
