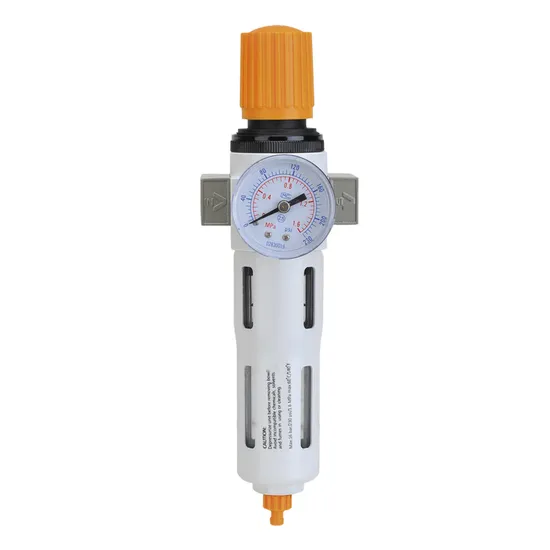

Klhfr Series Mini /MIDI/Maxi Compressed Air Filter Regulator Combination

Product Description

KLHFR Series MINI /MIDI/MAXI Compressed Air Filter Regulator Combination
1.Space-saving design with filter and regulator in a single unit.
2.Good particle separation and high flow rate.
3.Good regulating characteristics with minimal hysteresis.
4.Setting valves are secured by locking the rotary knob.
5.Pressure sensor(optional).
6.Two pressure regulation ranges:0.5...7 bar and 0.5...12 bar.
7.Two pressure gauge connections for flexible installation.
8.With manual,semi-automatic or fully automatic condensate drain.
9.Choice of fliter cartridges:40μm or 5μm.

KLHFR	1/4	-	-	-	MINI	-
Series Code	Port Size 06:G1/8'' 08:G1/4'' 10:G3/8'' 15:G1/2'' 20:G3/4'' 25:G1''	Grade of Filtration Blank:40μm 5M:5μm	Manometer Blank:12bar 7:7bar	Pressure Guage Blank:With Pressure Gauge 0:Without Pressure Gauge	Size MINI MIDI MAXI	Drain Blank:Turned Manually S:Semi-automatic A:Fully automatic

Detailed Images:
Packing & Delivery:
Our Company:
NingBo Kailing Pneumatic Co ,LTD. is a professional company engaged in the production of Solenoid Valves and pneumatic parts.Our company has strong techologies and high capability in research and development of new products.The company has fine workmanship amd perfect inspection techniques. The products include Solenoid Valve , Air source treatment unit , control element and executive element etc which are widely used in industries such as machinery , metallurgy, food , textile and environmental protection .
FAQ:
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry .
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

---
