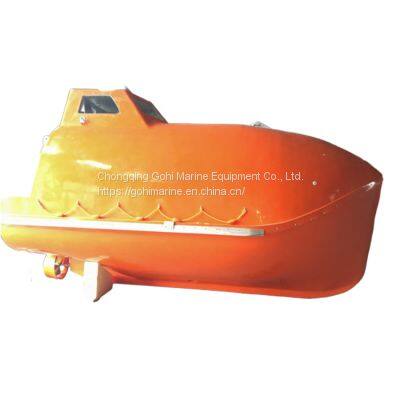

EC, RS, CCS Approved SOLAS 16 Persons 4.9m GRP Totally Enclosed Free Fall Lifeboat

Product Details

Product Description

Product Description
Product Introduction
EC, RS, CCS Approved SOLAS 16 Persons 4.9m GRP Totally Enclosed Free Fall Lifeboat is made compliance with the SOLAS Standard, MSC272(85),MSC274(85).
The cover hull of the lifeboat is made of FRP, between the outside hull and inside is filled with polyurethane foam which will supply buoyancy for the lifeboat, which will help SOLAS free fall lifeboat afloat when it broken during the accident.
Freefall type Lifeboat has strengthened configuration to bear the strong impact when falls into the water and can escape from the vessel or offshore platform quickly. It is especially suitable for the dangerous places such as oil drilling platforms, Tanker ships etc.
Marine Free Fall Lifeboat is a model that aboard from the stern port designed and manufactured in accordance with the latest specification of SOLAS and international standards.It can falls into the water through the free fall slide way and keep the passenger in the boat, to ensure quick and safe evacuation.
Freefall Lifeboats are lowered depending on itself weight, and recovering the lifeboat and rescue boats using electric boat winches. Freefall Type Lifeboat is suitable in worse ocean conditions, for example the ocean ships.It is highly Fire-Resistant and can self-righting by itself when capsized.
Freefall Marine Lifeboat is designed and manufactured according to the following SOLAS amendments and New regulations:
1. MSC.47(66)-Item 21,31,Chapter Ⅲ of Amendments of the International Convention for the Safety of Life at Sea 1974 and MSC.216(82), MSC.317(89)
2. MSC.48(66) Chapter Ⅳ of International Life-saving Appliance Code and MSC.218(82),MSC.272(85)
3. MSC.81(70) Part 1 of Revised Recommendation on Life-saving Applianccs and MSC.226(82),MSC.274(85),MSC.323(89)
The Lifeboats are approved by CCS,BV,EC,MED, ABS,RMRS, DNV-GL etc classification society.
Equipment data

No.	project	parameter
		Common	Fire-Protected
	Model	YZ49FC	YZ49FF
	Main dimensions	4.90*2.18*0.70m	4.90*2.18*0.70m
	Height	3.0m	3.0m
	No. of persons	16P	16P
	No-Load Weight	2580kg	2870kg
	Full Load Weight	3900kg	4190kg
	Speed	6 knots	6 knots
	The Free-Fall Certification Height	15m	15m
	Air Bottles Quantity Capacity	3*45L	3*45L
	Tank Capacity	190L	190L
	Suitable Davit Slide Way Length	6570 mm	6570 mm
	Davit Launching Tilt Angle	35○	35○
	Sprinkler system	/	1 set
	Engine Type :380J-3 Engine Rated Output:20.6KW Zhenjiang Siyang Diesel Engine Manufacturing Co., Ltd.

loading temperature: -30~65℃
working temperature(sea water): -1~30℃
outside color: International orange
Cooling method : water cooling
Starting method :Two Batteries
All the tightening parts such as a nut, bolt, etc., should be made of stainless steel (SUS 316), all the weather steel fittings should be made of stainless steel, the material of hull should be FRP.
Product Feature
1. SOLAS free fall lifeboat is made in accordance with the latest specification of SOLAS and International standards
2. Have Enough working space in steering cabin inside of the Freefall Marine lifeboat
3. World-wide after sale services
4. Authorization for maintenance and Inspection servicing global.
5. Cargo version and Tanker version Freefall Type Lifeboat for your choice.
6. Free release system make the operation more easy.
7. Self-righting function make the Freefall Type Lifeboat afloat and turn over in any angle.
8. Get approval from BV,CCS,RS,ABS and EC.SOLAS free fall lifeboat is widely used on Different kinds of ships.

---
