Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Forming Cup Thermoform Machine

Product Description

Plastic PP/PS/Pet Mineral/Starbucks/Jelly/Water Cup Thermoforming Machine/Cup Making Forming Cup Thermoform Machine
Description:
PM-7185 thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC plastic products.
Technical parameters:

PM-7185
1	Suitable Material	PP, PS, PET, PVC, PLA, etc.
2	Material Width	450-750mm
3	Thickness of Material	0.15-2.2mm
4	Max. Forming Area	710×520mm
5	Min. Forming Area	420×300mm
6	Forming Depth	150mm
7	Max. Cutting Force	60T (Used with heatable die system)
8	Maximum opening and closing stroke of forming mold	300mm
9	Maximum opening and closing stroke of cutting die	160mm
10	Positive molding product height	130mm
11	Negative molding product height	130mm
12	Stacking mechanism stroke	≤500mm
13	Installed Power	100KW
14	Heating Power	Upper furnace 25KW, lower furnace 25kw
15	Actual Energy Consumption	About 20KW/H
16	Power Supply	AC 380V/50Hz (3+N+PE)
17	Max. Production Speed	≤10 cycles/minute
18	Use Compressed Air Pressure	0.6~0.8bar
19	Consumption of Compressed Air	About 2.5-3.5 m³/minute
20	Cooling Method	The mold is cooled by circulating water
21	Machine Weight	8,000kg
22	Dimension (L*W*H)	9000mm×2300mm×2500mm

	Machine framework, Adopting national standard square steel pipe, the surface is painted with three layers, the frame is strong and durable, not easy to rust
Sheet delivering chain track
	Adjstable forming table, maximum forming area is 710*850mm. Mold table inside through with cooling water to low the mold temperature. This is the guarantee to ensure the production speed.
Powerful and stable cutting station. Full servo motor drive which makes machine production speed faster.

Features: 1.Adopt PLC control, the whole system is fully automatic, parameters digital display, easy operation

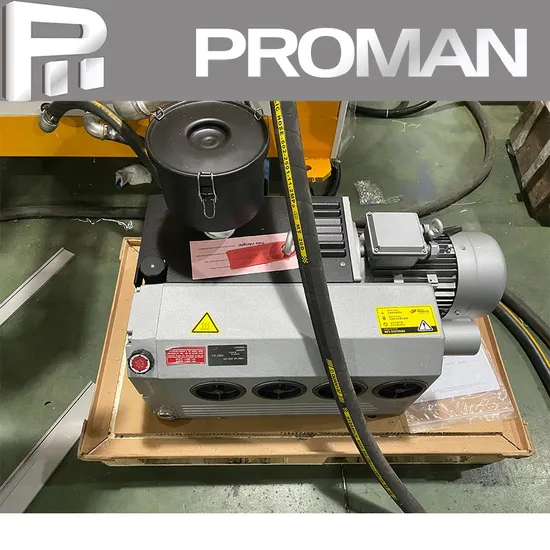

2.This machinecombines servo motor sheet feeding, vacuum forming system, servo motor + gas-liquid pressure cylinder(cutting pressure: 60T), stacking, counting and finished products conveying into one machine
3.4-pillar hydraulic structure, stable quality and low noise
4.Imported ceramic heater, double heating oven, accurate temperature control, long life
5.We provide customized service for you, the machine forming area can be designed and manufactured as your need.
6.Advanced servo motor sheet transporting system, forming length can be adjusted.
Our Company:
Certifications :
Appendix: 1.After equipments reached the workshop of customer,place equipments according to plane layout we offered.We will arrange seasoned technician for equipment installation,debug and test production at the same time make the equipments reach the rated producing capacity of the line.The customer need to offer the round tickets and accommodation ,and the salary for our engineer. 2.Our company offer technology training to customer.The content of training structure and maintenance of equipments,control and operation of equipments. 3.We promise that our goods are all new and not used. 4.After checking,we offer 12months as quality guarantee,free offer wearing parts and offer other parts at the lowest price.After quality guarantee,we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price.
Warmly welcome customers from all over the world to visit our factory.If you are interested in our products, please contact if you have any problem.

---
