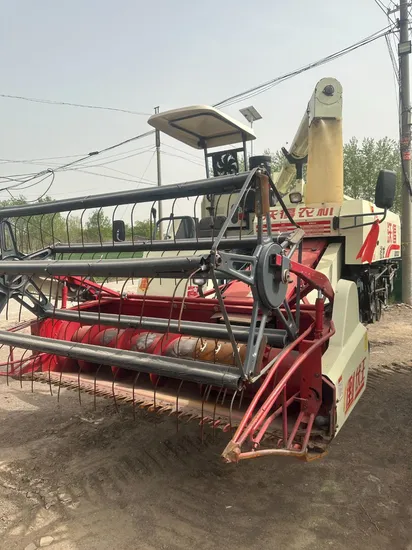

Crawler-Type Used Combine Harvester Agricultural Machinery for Farmland

Product Description

The Main Features of the used combined harvester:
1.Equipped with turbocharged engine 86.76kw with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 45C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields. of the used combined
harvester:Specification

Work Dimension L*W*H (mm)			5840*2520*2950
Weight (kg)			3840
Cabin/Sun shade			Sun shade
Engine Part	Model No.		Changchai 4L88
	Power/Speed (hp/rpm)		88/2700
	Fuel		Light Diesel Oil
	Fuel Capacity (L)		130
	Fuel Consumption(kg/hm2)		12~30
	Start		Motor Starter
Gear Box	ZKB65 made by WORLD Factory.
HST	45CC HST Imported from south Korea.
Walking Part	Rubber Track	Length of Ground Contact (mm)	1700
		Center Distance (mm)	1160
		Size(mm)	450*90*51
		Average Contact Pressure (kpa)	≤20Kpa
	Min. Ground Clearance (mm)		300
	Gear Shifts		Variable Sun-transmission 3 Shifts
	Walk Speed (Km/Hour)		Low:0~1.85 Medium:0~6.5 High:0~9
	Theoretical Work Speed (Km/Hour)		0.9-6.5
Harvesting Unit	Grain Lifter		Divider
	Working Width (mm)		2200
	Reel Bat	Dia. × Length (mm)	∮900×2028
		Gearshift Method	Constant Speed
		Adjusting Means	Hydraulic
	Stubble Height[Lift] (mm)		25cm or above
Threshing &Harvesting Unit	Threshing Mode		Axial Flow Type, Bullet Rotor
	Threshing Rotor	Type of Threshing	Beat Bar
		Dia. ×Length (mm)	∮620*2050
		Rotating Speed(rpm)	662/732
	Fan	Diameter	∮400
	Separating Type		Vibrating Sieves +Air Blow
	Area of Sieves (Lowe and Upper Sieves) (m2)		1.645

The FRQ of the used combined harvester:
1. What's the MOQ?MOQ is 1 set. but for your reference, one 40HQ can load 2 sets, that will save you a lot of sea freight.2. What's the after sales?Our products' warranty is for 6 months. after that, we can still supply technical support and original
spare parts.3. Dose the machine can harvest other crops?yes, except for the rice, the machines can also harvest wheat, corn, soybean, rapeseed, ect. but you may
need to change the cutting table.4. What's your lead time?usually within 15 work days.5. Are you interested in dealership with local company?Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more
machines in local market and supply better service.6. What's your Payment terms?
30% In advance, the balance before shipment

---
