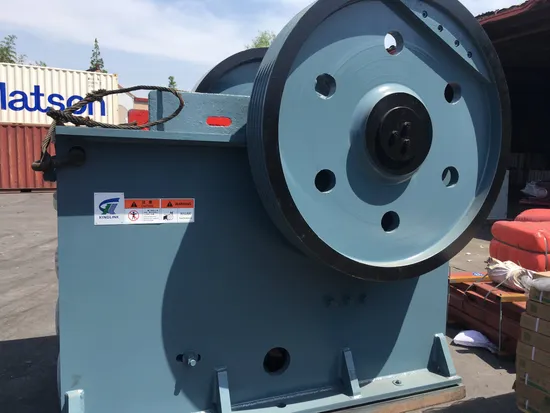

Primary Stone Jaw Crusher for Quarry/Concrete Aggregates/Black Rock/Iron/Gold/Copper Ore Crushing (PE2436)

Product Description

Introduction
Jaw crusher is mainly used in the industries of metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, suitable to crush hard and soft ores with compressive strength less than 320 MPa. This machine can break material s into medium size and fine size.
Advantages & Characteristic
1. High capacity and low power consumption;
2. Uniform particle size with high crushing and crushing ratio;
3. Simple structure; Easy operation
4. Low investment.
5. Perfect services.
Working Principle
Jaw Crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.
The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.
When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushers and discharges materials, which, in turn, realizes the goal of mass production.
Technical Parameters

Model	Size of feed opening (mm × mm)	Max. feed size (mm)	Capacity (t/h)	Eccentric shaft rotation speed (r/min)	Electric motor power (kW)	Adjustable range of discharge opening (mm)	Weight (t)
PE-250×400	250×400	210	5-20	300	15	20-60	2.8
PE-400×600	400×600	340	16-65	275	30	40-100	6.5
PE-500×750	500×750	425	45-100	275	55	50-100	10.1
PE-600×900	600×900	500	50-120	250	55-75	65-160	15.5
PE-750×1060	750×1060	630	52-180	250	110	80-140	28
PE-800×1060	800×1060	650	85-143	250	110	100-200	30
PE-870×1060	870×1060	670	181-210	250	110	200-260	30.5
PE-900×1200	900×1200	750	140-260	200	110-132	95-165	50
PE-1000×1200	1000×1200	850	160-300	200	110-132	195-265	51
PE-1200×1500	1200×1500	1020	300-600	180	160	150-300	100.9
PEX-250×750	250×750	210	8-22	330	22	25-60	4.9
PEX-250×1000	250×1000	210	16-52	330	30-37	25-60	6.5
PEX-250×1200	250×1200	210	20-60	330	37	25-60	7.7
PEX-300×1300	300×1300	250	20-90	330	55	20-90	11

Photos at our factory
Inquiry Service
More details we needed for sending you more suitable quotation,
1. What kind of raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size you required?
Note: All the above information is subject to our final confirmation.

---
