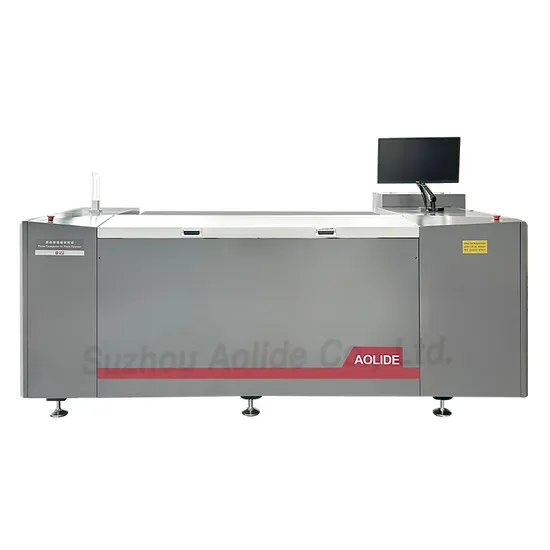

CTP Flexo Plate Laser Engrave Machine Thermal CTP Plate Mkaing Machine

US$70,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ALD-5080
Plate
Letterpress
Type
CTP Plate Making Machine
Material / Metal Processed
Carbon Steel
Classification
Inner Drum
Light Source
Laser
Certification
CE, ISO
Fully Automatic
Yes
Max Plate Size
2032*1270mm
Resolution
4800dpi
Application
Label Printing,Trade Mark,Packaging
Weight
2700kg
P+
Support
Transport Package
1 Set Per Wooden Case
Specification
3500*1630*1100mm
Trademark
ALD
Origin
China
HS Code
8442302190
Production Capacity
10 Sets Per Month

Packaging & Delivery

Package Size
355.00cm * 168.00cm * 115.00cm
Package Gross Weight
2740.000kg

Product Description

Item Name:CDI Digital Flexo Plate Making Machine
Details as below:
Style No ALD-5080 ALD-5080F-S
Produce Capacity 4.2 m²/h,2.8m²/h 5m²/h,7 m²/h,11m²/h
Max plate size 2032*1270mm 2032*1270mm
Plate thickness 0.11-6.35mm 0.11-6.35mm
Output media Digital flexographic water-washable letterpress plates,Digital flexographic water-washable plates,Digital flexographic solvent-washable plates Digital flexographic water-washable letterpress plates,Digital flexographic water-washable plates,Digital flexographic solvent-washable plates
Applocation Label printing,Trade mark,Packaging Label printing,Trade mark,Packaging
Resolution 4800dpi 4800dpi
Loading method Manual loading Manual loading
Interface Gigabit Ethernet Gigabit Ethernet
External dimension 3500*1630*1100mm,2700kg 3500*1630*1100mm,2700kg
Power supply AC220V 50/60Hz 8KW peak(Single phase) AC380V 50/60Hz 10KW peak
Environment Best environment temperature18-30­°C,Humidity 40-70% non condensing temperature18-30­°C,Humidity 40-70% non condensing
