Product Description
Product Description
Products Description

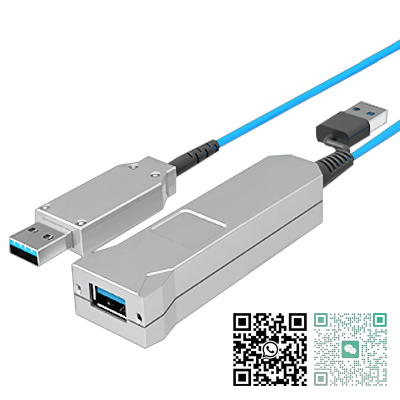

The FPUC-3001-XXX serires USB 3.1 Fiber Active Optical Extension Cable-type A Male to type A Female, with power supply Y-cable are also called USB 3.0 AOC, Fiber Optic USB Cable, Optical USB Cable, USB Active Optical Cable,USB Active Optical Extension Cable. They are specifically designed to extend the transmission distance between USB hosts and devices, and each cable consists of two USB 3.0 Standard-A connectors. The transmission distance can be up to 100m (330ft) through OM3 pure fiber optical cable, with maximum transmission of 5Gbps.
FPUC-3001 is powered by its Y-cable.
Highlight Features:
High Bandwidth: complied with USB 3.0 standard, up to 5Gbps super speed
Backward Compatible: Supports USB 2.0/1.1 when work with SuperTT build-in devices
Long length Transmission: Delivers lossless signals over 100meter maximum length
Powered by Y-cable (USB 2.0 type-A Male)
Easy Installation: Plug and play for both sides, unidirectional design
Supports self-powered USB 3.0 compliant devices
Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated connectors
RFI/EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
Customization: Up to 100m maximum length, logo, and packaging available
Applications:
Machine Vision Camera Link
Industrial Control
Digital Signage
Home Network Integration
Medical Device Connectivity
KVM Extension
Remote Desktop USB 3.0 Connections
Security: web camera, access control
USB 3.0 Devices Sharing: print, scan, storage
Frequently Asked Questions:
Q: Are USB 3.0 Active Fiber Optical Extension Cables by AOCFIBERLINK compatible with all USB devices?
A: Though no USB standard currently exists for optical cables, USB 3. Active Fiber Optical Cables by AOCFIBERLINK have been successfully tested with more than a hundred devices spanning all major consumer operating systems. In general, you can expect USB 3. Active Fiber Optical Cables by AOCFIBERLINK to work with most self-powered USB 3.0/2.0 compliant device.
Q: Can I charge my portable device (like iPhone or iPad) with USB 3. Active Fiber Optical Extension Cables by AOCFIBERLINK ?
A: USB 3. Active Fiber Optical Extension Cables by AOCFIBERLINK are designed to be used with self-powered peripherals only. No significant power is available after powering its internal opto-electronics. A self-powered USB 3.0/2.0 hub can always be used at the peripheral (B-side) to provide power if desired.
Product Parameters
| Fiberlink P/N |
| FPUC-3001 |
| Source Connector | Interface | USB 3.0, type-A Male |
| Dimensions (LxWxH) | 44x27x13 mm |
| Display Connector | Interface | USB 3.0, type-A receptacle with Y-cable Power Supply |
| Dimensions (LxWxH) | 82x26x14.5 mm |
| Cable | Diameter | Φ3.0mm |
| Type | Hybrid |
| Jacket | TPU |
| Bending Radius | 30mm |
| Performance | Bandwidth | 5Gbps |
| Compatible | USB 2.0/1.1 |
| Power Delivery | 5V/900mA (max.) |
| Power Consumption | 2.15W |
| Supporting | Windows/macOS/Linux |
| Length | Length | Up to 100m (330 feet) |
>>
