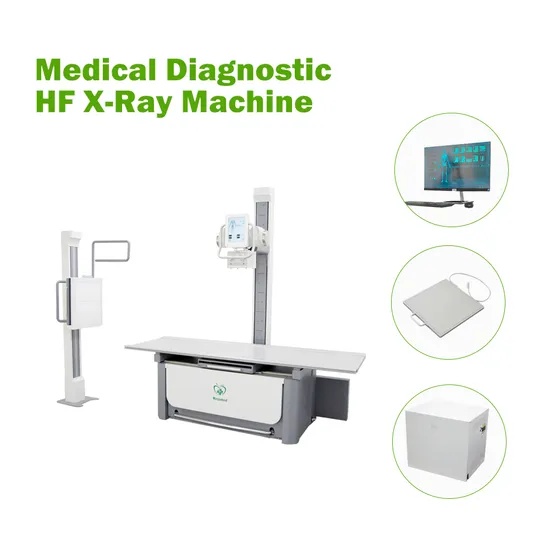

My-D023G High Frequency Medical X-ray Diagnostic Hf X-ray Machine Medical Xray Equipment for Clinic

Product Description

MY-D023G High frequency medical x-ray diagnostic HF x-ray machine medical xray equipment for clinic
High Frequency Generator
• Power Rating: 50KW
• Line Nominal, Phase: 380VAC, 3Φ
• Working frequency:50kHz-220kHz
• kV Range: 40~150KV
• mA Range: 10~630mA
• mAs Range:0.4 ~1000mAs
• Exposure Time Range:1ms~10000ms
X-Ray Tube
• Anode Heat Capacity: 300kHU/212kJ
• Focus spot size: 0.6/1.2mm
• Voltage: 150kV
• Anode Rotating Speed: 2800r/min(50Hz)
• X-ray Coverage: 420 * 420mm at SID 1000mm
Flat panel Detector
• Detector Technology: a-Si
• Scintillator: Csl
• lmage Size: 43X43cm(17X17in)
• Pixels Matrix: 3072 X3072
• Pixel Pitch: 139 μm
• A/D Conversion:16bit
• Minimum Detectable Dose: 14nGy
• Spatial Resolution:3.6LP/mm
• X-ray Voltage Range: 40-150KV
Collimator
• Power: 150W
• Operation: manual
• Auto-close Time: 35s±5s (adjustable from 30s to 60 S)
• Inherent Filtration: 1.5mm Al
• Brightness: ≥100lux (100cm)
Tube Stand
• The tube longitudinal stroke :1600mm
• The tube support arm can be extended or rotated
• The tube vertical stroke: 1300mm
• The tube rotation angle: ±90°
• The column rotation angle: ±180°
• Anti-scatter grid specification: Size: 450 × 450mm; Line: 40 L/cm; F.D: 100cm
• Ratio: 10:1
4 Way floating table
• Tabletop size:2200*740*680mm
• Longitudinal movement range of tabletop:570mm
• Lateral movement range of tabletop:210mm
• Movement control mode: EM lock
Wall Bucky Stand
• Vertical moving range:610mm
• Movement control mode: mechanical lock
Workstation hardware
• Windows operating system
• CPU: i5/3.3 GHz
• RAM Capacity: 8 G
• Hard drive capacity: 1T
• Image displayer: 24inch
