Product Details
Product Description
Product Description

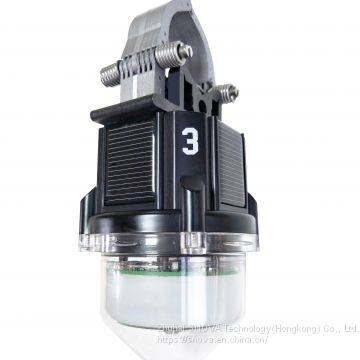

Overhead type Short circuit &Ground Fault Indicator
If you are interested in our products ,please contact with us .
Contacts:Andrew Mao
Email:snovatech@163.com or 626387134@qq.com
Mobile:0086-13570657698
WeChat :13570657698 QQ:626387134
The signals description of indicator
The fault indicator type flicker SNV308.2 has an ultra-bright, 360°red LED and a green LED pointing to the bottom for fault indication. Additionally it ha a yellow LED pointing to the bottom to signal its operational status.
1) Red LED: when permanent fault happen , the red LED will flash, 1 flash very 1 second.
2) Green LED: when Fault is temporary fault happen. The red LED will flash, at same time, additional green h every 1 second. ( Temporary fault character : when fault happen, and power off, but re-closer close successful, and power on again).
3) Yellow LED:
Yellow LED signals the operating state of the fault indicator. Operating states are:
__yellow LED does not blink, means fault indicator is on service state
__yellow LED blinks every second, means fault indicator is in radio mode
__yellow LED blinks every 3rd second, meanings the battery is running low.
Operational settings and functions of the SNV308.2
The operational settings of the fault indicator can be adjusted and read out with the remote control , Flicker type SNV306.2. Detailed information about all functions of the indicator basic settings like trip current and advanced settings like the auto re closer settings can be found in the instruction manual for the remote control, Flicker type SNV306.2. Information how to change or read out the settings can be also found there.
Please note: The online current can be read out with the remote control, Flicker type
SNV306.2
|
Careful handling
When moving the adapter down to the ground, please move it downwards vertically. When placing it onto the ground horizontally the connection to the hot stick might break.
>>
