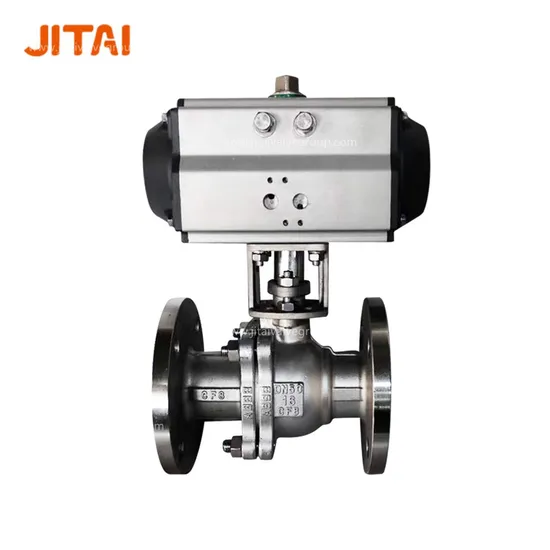

Side Entry Fire Safe Gas Full Port Floating Flanged Pneumatic Actuated Stainless Steel Ball Valve From CE Manufacturer with Low Price

Product Description

Product Description Overview
Floating Type Pneumatic actuated Ball Valve is a ball valve with pneumatic actuator, solenoid valve, FRL, limit switch, positioner, control box, etc., to achieve local control and remote centralized control. The valve switch can be controlled in the control room, which saves human resources, time and safety to a large extent.
Application
Flow Control Pneumatic Ball Valves are mainly used in the pipeline for fast cut-off , distribution and change of the flow direction.
Features
1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.
2. Simple structure, small size and light weight.
3. It is tight and reliable. The sealing surface material of the ball valve is widely used in plastics and has good sealing performance. It has also been widely used in vacuum systems.
4. Convenient operation, rapid opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for remote control.
5. Convenient maintenance, simple structure of the pneumatic ball valve, the sealing ring is generally movable, and it is convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.
7. It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure.
8. Because the pneumatic ball valve power source uses gas, the pressure is generally 0.2-0.8MPa, which is relatively safe. If the pneumatic ball valve leaks, compared to hydraulic and electric, the gas can be discharged directly, which does not pollute the environment and has high safety at the same time.
9. Compared with manual and gear operated ball valves, pneumatic ball valves can be configured with large diameters. (Manual and gear operated ball valves are generally below DN300 caliber, and pneumatic ball valves can reach DN1200 caliber.)
Scope

Nominal size	2"~24"(DN25~DN1200)
Nominal pressure	Class 150~Class 2500(PN10~PN420)
Standard:	ASME B16.34, API6D, ISO17292
Body material	Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End connection	RF, BW, RTJ,
Operation	Manual, Pneumatic, Electric, Hydraulic

Product Parameters

Company Profile
Jitai Valve Group is a genuine valve manufacturer. 7000-sqm factory 100 employees 5+ senior engineers 30+ design patents 2 million sets of valves delivered 20 million USD annual revenue Since 1988, we have been expert in manufacturing a wide scope of industrial valves including: Gate valves Globe valves Check valves Ball valves Butterfly valves API valves Steam valves High pressure valves High temperature valves Power Plant valves Our Advantages Heavy-duty valve expert with proven expertise in harsh environment; Stringent quality control and traceable reports to provide zero-defect products; Rugged and durable configuration according to API, ASME, BS, JIS, EN standards; All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components; Complete BV certification report can be downloaded on our page About us.
FAQ
1.Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.
2.Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.
3.Q: Can you do non destructive test for valve components ?
A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc
4.Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.
5.Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.
6.Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.
7.Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 4 days

---
