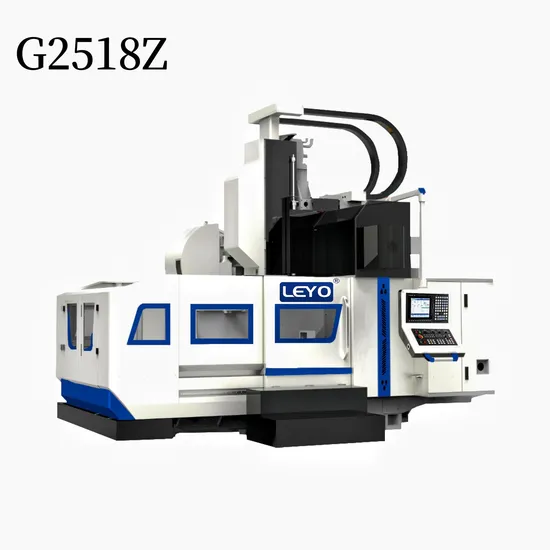

Leyo G2518z Gantry Width 1850 mm 3 4 5 Axis CNC Gantry Milling Machine Large Gantry Millling Machine

Product Description

Technical Parameters
Items		Unit	G2518Z
Working table (L*W)		mm	2600*1600
X/Y/Z axis travel		mm	2600*1800*700
Gantry width		mm	1850
Working table max load		kg	6000
X/Y/Z rapid moving speed		m/min	30/30/30
X/Y/Z rapid feeding speed		m/min	20
Spindle taper hole			BT40/150 & BT50/190
Spindle speed*		rpm	6000/8000/10000/12000/15000
Spindle type*			Belt (6000-10000 rmp) / Direct (12000-15000 rmp)
Spindle motor power*		kw	18.5/22
Controller*			GSK/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens
Tool magazine capacity *		T	24
X/Y/Z position accuracy			±0.008
X/Y/Z reposition accuracy			±0.008
Machine weight		kg	22000
Tip:The asterisk is optional,and price is different. More requirement contact us.
Optional function: coolant through spindle/chip conveyor/4/5 axis cnc rotary table/oil mist separator/oil skimmer,etc. Tip:We also can offer other machine accessories and tools:tool holder/collet chuck/cutter,etc. We provide one-stop solution,more requirement contact us.

Dongguan Liyang Intelligent Technology Co., Ltd., located in Houjie Town, Dongguan City, Guangdong Province, China, is a manufacturer of CNC machine integrating industry and trade. Its main products are high-end 3-5 axis CNC milling machines like high-speed cnc milling machines, gantry milling machines, etc; cnc machining center like vertical machining center, horizontal machining center, vertical horizontal dual-use machining center, compact machining center, etc; and cnc lathe, etc. These machines are mainly used in the producing and machining of parts and molds in 3c electronics, automobiles, instruments and meters, electronic appliances, medical devices, aerospace, machinery manufacturing, new energy vehicles, 5G communication industries and other industries. Our company has obtained several utility model patents and invention patents, CE certificates, ISO9001 quality management system certificates, and factory strength certification from SGS, TUV and other international testing and certification institutions. Our machinery and equipment are sold to the domestic and foreign markets. The main domestic markets are Guangdong, Zhejiang, Fujian, Sichuan and many other provinces. The international market is mainly exported to Europe, Central Asia, Southeast Asia and other countries. Our goal is to provide the world with high-quality CNC machine.
About LEYO service
1. Customized service
1. Design logo for free or remove logo services.
2. Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services.
3. Customized machine configuration for free. Customized according to customer configuration requirements, such as the brand and model of screw rod and linear guide rail, the brand power and speed of spindle, the brand and model of controller, and the type of tool magazine.
4. Customized special machines for free. If you have special requirements on the material, process, precision and efficiency of the products you are processing, we can customize the models based on the products you are processing.
5. Free design of automatic production line.
The customization quantity and price will vary according to the complexity of customization.
2. One stop procurement service
Provide accessories, four five axis turntable, tailstock, tool setting instrument, measuring head, chain chip conveyor, etc. Consumables like tools, tool handles, tool carts, tool boxes, etc.
3. Free online and offline after-sales service
The warranty period of all models is one year, and spare parts and online and offline after-sales services are provided free of charge within one year. However, the travel expenses of after-sales personnel need to be paid by the customer, such as transportation, board and lodging.Lifetime free online after-sales technical guidance service.
4. Fast delivery service
If you need it urgently, please tell me the expected delivery date, and we can arrange it according to customer needs. The fastest production time is 7 working days.

---
