US$3,600.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Series
Rubber Tile Machine
Material
Rubber Powder, Glue, Pigment
Total Pressure
0.5-1.0 Mn
Overall Dimension
2200X900X2200 mm
Type
General Rubber Machinery
Transport Package
Wooden Packing
Production Capacity
300 Sets Per Year
Product Description
Process of tile making:
Rubber powder/ crumb rubber(10-30 mesh )rubber mixer (powder, glue, pigment mixing) rubber tile making machine rubber tile / rubber mat
Details of tile making machine:
Rubber floor vulcanizer is specially producing rubber floor tile, each layer vulcanizing two sets of mould, turns configuration of sulfide, can effectively improve the production efficiency. At the same time configuration manual push-pull mould device, it is more convenient to operate.
Description:
1. This kind of machine is multi-functional beacuse it is suitable to be used for top opening double or triple mold plates.
2. High force employs dual pressure, and each oil system is designed seperately which makes it stable, quiet and low frequency of malfunction when working. Two sides can be operated simultaneously.
3. The electric system adopt PLC programming control, which is easy to be operated.
4. Automatic in/out mold and ejector device, low labor strength.
5. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
6. It is possible to adjust the speed of opening/closing the mold. It is very accurate and reliable.
7. Molds can be positioned precisely. A 100% safty design for position is avaliable to prevent molds from damaging.
Waste tire recycling line:

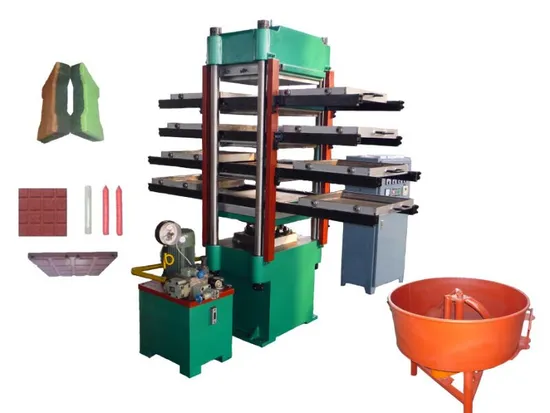

Picture of rubber tile machine:
FAQ:
1. Q: Are you a factory or trading company?
A: We are factory.
2. Q: Where is your factory? How can i visit?
A: Our factory located in qingdao city. You can fly to qingdao liuting airport, then we can pick you up to our facotry to visit. Warm welcome visit us.
3. Q: How does your factory control the quality of machines and after sales service?
A: Our machines passed CE, BV, ISO, SGS certification, pls confirm the quality. All our machines have 1 year guarantee, will provide lifetime maintenance.
| Model | XLB-D/Q 350X350X1(2) | XLB-D/Q 400X400X2 | XLB-D/Q 500X500X2 | XLB-D/Q 600X600X2 | XLB-D/Q 750X850X2(4) |
| Nominal pressure(MN) | 0.25 | 0.50 | 0.60/0.80 | 1.00 | 1.60 |
| Plate size(mm) | 350X350 | 400X400 | 500X500 | 600X600 | 750X850 |
| Plate clearance(mm) | 125 | 125 | 125 | 125 | 125 |
| Working layer number | 1(2) | 2 | 2 | 2 | 2(4) |
| Plate unit pressure(Mpa) | 1.56 | 3.1 | 3.2 | 2.8 | 2.5 |
| Piston stroke(mm) | 250 | 250 | 250 | 250 | 250(500) |
| Motor power(kw) | 3.0 | 2.2 | 2.2 | 2.2 | 3.0 |
| Overall dimension(mm) | L | 1200 | 1400 | 1650 | 1410 | 1900 |
| W | 400 | 550 | 600 | 680 | 950 |
| H | 1300 | 1500 | 1600 | 1750 | 2000 |
| Weight(kg) | 800 | 1300 | 1500 | 3500 | 6500(7500) |
>>
