Weiss Vm32b Variable Speed Milling Machine Manual Mills

Product Description

Recommended Products
VM18L VM25L VM32L

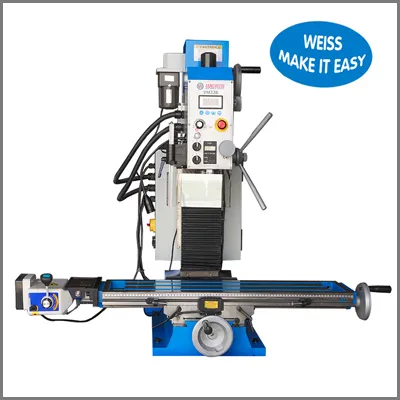

WEISS VM32B Equipped with Varaible elevator motor (Optional), Headstock lifted automatically
1. provides much larger travels and work area with 840 x 210mm worktable
2. Big powerful 2 HP (1500W) Brushless DC Variable Speed Motor
3. Single speed tooth belt driving system with 50-5000 RPM speed, provides easy and reliable operation, super silence runnning
4. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis
5. All leadscrews are true inch pitch screws, larger dials with 0.005mm graduate for easier reading
6. True color LCD screen 3-Axis DRO system with magnetic scale
Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	VM32B
Item No.	10203328	Drill chuck 3-16 B16	Variable elevator motor (Z Axis)
Max. drilling capacity	32mm	Drawbar	Tapping Function
Max. end milling capacity	20mm	Arbor MT3/B16	Keyless Drill Chuck 3-16mm
Max. face milling capacity	76mm	Digital Depth Ruler	ER 25 Collet Chucks MT3(8pcs)
Table size	840x210mm	Spindle Cover with Micro Switch	Vice BMS150
Table travel (X,Y)	580X205mm	Toolbox and tools	HSS 10 pcs Drill sets
T-slot	3x14mm		End Mill Sets 7pcs 4-16mm
Spindle taper	MT3 or R8 or ISO30		3-Axis DRO(Magnetic Scales)
Spindle stroke	70mm		58pcs clamping kits M12
Step of spindle speeds	Variable		Oil Tray
Range of spindle speeds	50-5000rpm		Stand
Spindle incline angle	±90°		Luxury Stand
Distance from spindle to column	210mm		Power feed
Distance from spindle nose to table	470mm
Motor	1500W
Packing size	1050x740x1150mm
Net weight	120KG

Details Spindle
Equipped with Varaible elevator motor (Optional)Headstock lifted automatically
VM32B Variable speed enables to operate easily
Spindle is supported by high precision taper roller bearing

Spindle RPM can be monitored on the digital readout
Spindle movement can be monitored on depth ruler in both inch or metric way

Brushless Motor
· VM32B has 2 HP(1500W) POWERFUL brushless motor with silent running. Compare to old DC motor with brush, no need to change the carbon brush any more.
· High quality electronics used throughout machine for long term reliability
· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users

VM32B precision manual fine down feed can be adjusted with the min. feed rate up to 0.609mm; A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.
Single speed belt drive system provides more quiet and easy operation, avoid any failure prone plastic gears and the hassle of changing them when stripped (on old version mill);Tooth belt provide strong and precision transmission

Tapered gibs with double locks Dovetail:adjustable taper inserts Can be tiltled 90 degress
Factory and Delivery
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc. 3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.

---
