Waste plastic PP PE/HDPE/LDPE/LLDPE/BOPP soft Film/Bag/Woven Bag/Non Woven/Fiber/Granulating Plant/Granulation Line/Recycling Granulator

Product Description

Product Description

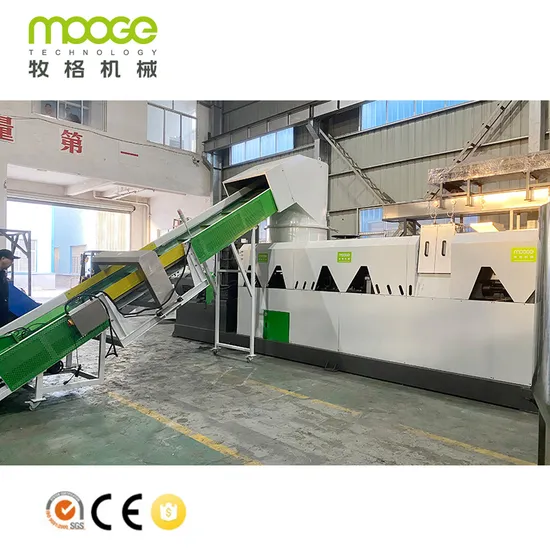

This ldpe hdpe pe pp waste plastic film granulator is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE PP material, such as clean HDPE, LDPE, LLDPE film flake, clean PE bag, etc.
The material go through transmission system, extrusion system, cooling system and collecting system will turn to be clean perfect pellets for reuse.
You can choose double stage or single stage extruder according to the cleanness of your material.
This ldpe hdpe pe pp waste plastic film granulator can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the pelletizing line according to client's material and product requirement. Product Parameters
RDS Series Single Stage Compacting Die-Face Cutting Pelletizing LineBelow are the main parameters for reference.

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity
RDS-SJ85	85	28-33:1	55KW	150-200kg/hr
RDS-SJ100	100	28-33:1	75KW	200-300kg/hr
RDS-SJ130	130	28-33:1	90KW	300-400kg/hr
RDS-SJ150	150	28-33:1	110KW	400-500kg/hr
RDS-SJ180	180	28-33:1	132KW	600-800kg/hr
RDS-SJ200	200	28-33:1	160KW	800-1000kg/hr

RSS Series Double Stage Compacting Die-Face Cutting Pelletizing Line Below are the main parameters for reference.

Model	Screw Diameter	Main Motor Power	Screw L/D	Second Screw L/D	Capacity
RSS-SJ85	85	55KW	28-33:1	10-12:1	150-200kg/hr
RSS-SJ100	100	75KW	28-33:1	10-12:1	200-300kg/hr
RSS-SJ130	130	90KW	28-33:1	10-12:1	300-400kg/hr
RSS-SJ150	150	110KW	28-33:1	10-12:1	400-500kg/hr
RSS-SJ180	180	132KW	28-33:1	10-12:1	600-800kg/hr
RSS-SJ200	200	160KW	28-33:1	10-12:1	800-1000kg/hr

Working Flow
Working Flow (Compacting double stage water-ring cutting pelletizing line for example)
---- Belt Conveyor: Feeding PE film or bags pieces into compactor. If there is any metals inside, metal detector is suggested.
---- Compacting force feeder: With multi blades crushing and compulsively compress the material into extruder
---- Single Screw Extruder (first stage): Plasticizing material with high temperature and exhausting hot gas.
---- Vacuum pump system: exhaust the moisture and air with vacuum pump
---- Hydraulic Screen Exchanger: Filter material impurity.
---- Single Screw Extruder (second stage): Further plasticizing and filtering material with high temperature.
---- Hydraulic Screen Exchanger: Further filter material impurity to make production more stable.
---- Die-Face Cutting Machine: Cutting pellets with high speed rotation.
---- Water Tank: Cooling the pellets with cold water.
---- Dewater Machine: Drying the pellets.
---- Air Blower: Blow good pellets into the silo.
---- Storage Silo: Collecting pellets.
---- Control Cabinet: Control the line on/off (famous brand such as Schneider, Siemens, etc.)
Detailed Photos
Compacting Force Feeder
>With glass window to check inside working.
>Barrel base with the water cooling system
>Temperature controlled by magnetic valve
>The barrel touched material all made by stainless steel.
Single Screw Extruder
>Extruder made by sturdy frame, heavy. No vibrating when the machine is running
>The whole frame where installed the gearbox, motor and screw has done the milling working.
>The frame is build up by the square tube and thick steel on top.
Hydraulic Screen Changer
>Double position board model
>Board made by 38CrMnAl with forging and heating treatment that won't deform after heating up. >With hydraulic station and air accumulator tank one set
>With the magnetic drive valve to control the working
Vertical Die Face Cutting System
>Cutting speed adjust by inverter with "DELTA" from Taiwan
>Blades are made by SKD-11 good steel
>Die mold made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.
Vertical Dewatering Machine
>Rotor and cover made by stainless steel SUS 304
>Inside rotor is special design as hexagon with better effect
>Machine bottom have one waste water collecting tank with filtering mesh to clean the water before drain
Electric Cabinet
>Switch and contactor: SCHNEIDER brand
>Main invertor: "DELTA" Brand Made in Taiwan
>Temp. Meter: "OMRON" brand of Japan
>With thermorelay to protect the motors, will trip if over loaded
>The extruder barrel heating is automatic controlled by the PID temp.meter
Related Product
Double Stage Compacting Strand-Cooling Pelletizing Line
for soft pe film pp bags
This is another cutting type of plastic pelletizing line for buyer's optional choice
Single Stage Compacting Die-Face Cutting Pelletizing Line
for soft pe film pp bags
If your material is not dirty, we suggest you this single stage pelletizing line with lower cost
Soft PE Film PP bags Recycling Washing Line
We also have the plastic washing line that can crush the material into small pieces and then wash the material and dry them before peleltizing if your material is extremly dirty
Packaging & Shipping
• For the loose cargo we will packing by wooden box
• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can ship the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client's warehouse to loading Company Profile
JIANGSU MOOGE MACHINE CO.,LTD is a professional manufacturer specialized in designing, developing, manufacturing, and servicing a complete line of plastic recycling machine with more than 10 years' experience. e are mainly engaged in high efficient plastic recycling machine including the PET bottle washing line, soft plastic pe film/pp bags washing line, rigid plastic bottle/bucket washing line, plastic pelletizing line, shredder machine, crusher machine and other related auxiliary machine.
We attend the CHINAPLAS every year (In Shanghai and Guangzhou) and take with our machine to test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Sincerely welcome to our factory for visit and discuss issues.
After Sales Service
• Pre-sale: we giveour client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film? PP woven bag? HDPE/PP bottle? or other plastic?
• What capacity(kg/h) do you want?
• What is the final size(mm) of granules you want?
• Other special requirements about the ldpe hdpe pe pp waste plastic film granulator you want.

---
