US$12,290.00-21,090.00
|
2 Sets
(MOQ)
|
Basic Info.
Certification
API, ISO, CB, CE
Working Temperature Range
High Temperature
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Stainless Steel
Transport Package
Wooden Box, Steel Structure
Production Capacity
500000m2/Year
Packaging & Delivery
Package Size
1200.00cm * 577.00cm * 577.00cm
Package Gross Weight
2230.000kg
Product Description

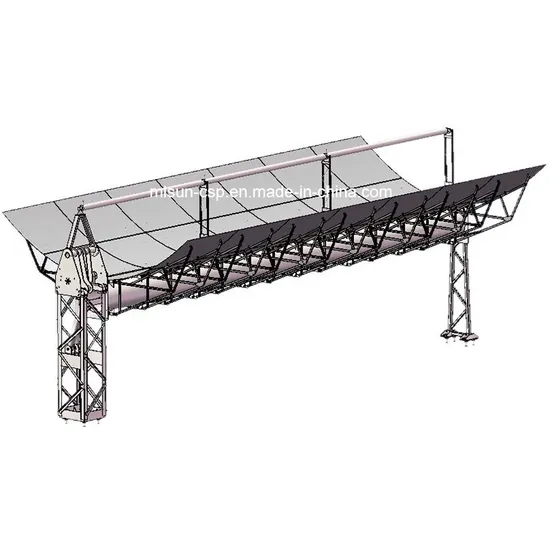

We manufacture Parabolic Troughs for Concentrated Solar Power plants.There are 2 regular models:
Parabolic Trough 2.55m*6m, Parabolic Trough 5.77m*12m.
Parabolic Trough 2.55m*6m is used for seawater desalination, hot water, hot air, drying, room heating, especially generating steam.
Parabolic Trough 5.77m*12m is used for solar thermal power plants by generating high temperature and high pressure steam to drive the steam turbine, in order to generate electricity.
| No. | Parabolic Trough Concentrator | PTC 2.55m*6m | PTC 5.77m*12m |
| 1 | Trough width | 2.55 m | 5.77 m |
| 2 | Trough length | 6 m | 12 m |
| 3 | Aperture area | 15.3 sqm | 69.24 sqm |
| 4 | Tracking accuracy | 0.1° | 0.1° |
| 5 | Receiver tube (glass-to-metal) | 3 pieces | 3 pieces |
| 6 | Receiver tube material | SUS304 stainless steel | SS321/316L stainless steel |
| 7 | Working temperature | 300ºC | 400ºC |
| 8 | Working pressure | 40 bar | 40 bar |
| 9 | Driving system | 1 set | 1 set |
| 10 | Sun-tracking and control system | 1 set | 1 set |
>>
