460*200mm 250ahr Professional High Precision Tool 2 Axis Automatic Feed Processing up and Down Handwheel High Speed Movement Surface Grinder Grinding Machine

Product Description

Product Description
Experience unparalleled precision and craftsmanship with Dongguan TranStar Machinery Co., Ltd.'s High Precision 2 Axis Handwheel Surface Grinder. This state-of-the-art machine is engineered to deliver exceptional surface finish and accuracy, making it an indispensable tool for your production line.

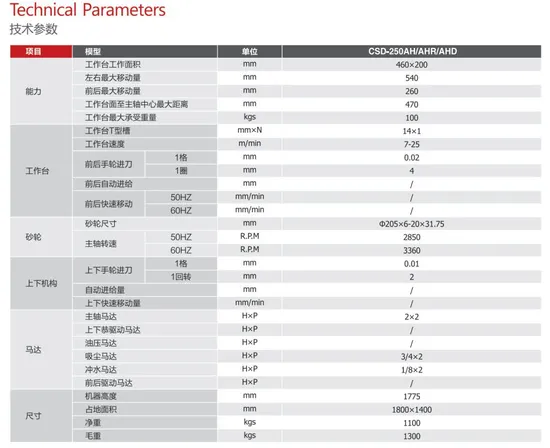

Product Parameters
Delve into the superior specifications of our High Precision 2 Axis Handwheel Surface Grinder. Designed by the experts at Dongguan TranStar Machinery Co., Ltd., this machine ensures consistency and meticulous attention to detail in every use, enabling peak performance and reliability.

Mountings	Specifications		Unit	CSD-250AH/ AHR/ AHD
Ability	Table Dimensions		mm	460×200
	Maximum forward and backward movement		mm	540
	Maximum left-right movement		mm	260
	Distance between spindle center and work surface		mm	470
	Maximum bearing weight of working table		kgs	100
Work Table	Table T-slots		mm×N	14×1
	Table speed		m/min	7-25
	Front and rear handwheel feed	a check	mm	0.02
		a round	mm	4
	Auto-supplying from front to back		mm	/
	High speed moving from frong toback	50HZ	m/min	/
		60HZ	m/min	/
Grinding Wheel	Grinding Wheel Size		mm	Φ205×6-20×31.75
	Speed of mainshaft	50HZ	R.P.M	2850
		60HZ	R.P.M	3360
Upper and lower mechanism	Up& down handwheel feed	a check	mm	0.01
		a turing round	mm	2
	Auto-supplying volumn		mm	/
	High-speed mouing dimension from up to down		mm/min	/
Motor	Spindle motor		H×P	2×2
	Drive motor up and down		H×P	/
	Drive motor up and down		H×P	/
	Vacuum motor		H×P	3/4×2
	Dust catching motor		H×P	1/8×2
	Back and front driving motor		H×P	/
Machine Size	Mechanical height		mm	1775
	Occupied area		mm	1800×1400
	Net weight		kgs	1100
	Gross Weight		kgs	1300

Products Details: Discover the intricate features and benefits of the High Precision 2 Axis Handwheel Surface Grinder from Dongguan TranStar Machinery Co., Ltd. With its robust design and cutting-edge technology, it promises to enhance your manufacturing processes with unmatched efficiency and precision.

---
