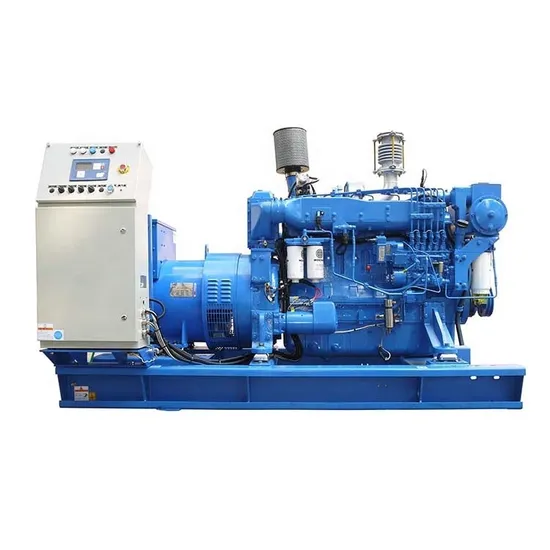

120kw 150kVA Silent Forced Double Circulation Marine Boat Generator Set

Negotiable 1 Units (MOQ)

Basic Info.

Model NO.
CQFJ120J-WQ
Rated Current
216A
Frequency
50Hz
Certificate
CCS
Product Name
Boat Biogas Fuel / Gas Generator Set
Transport Package
Wodden
Trademark
CY POWER
Origin
China
Production Capacity
1000 Unit/Units Per Year

Product Description

Product Description
120KW 150KVA Silent Forced double circulation water cooling LPG CNG weichai marine boat biogas fuel / gas generator set
Engine Engine model : WP10CD144-15DF 144Kw/1500rpm 6- cylinder, in - line, 4 - stroke, turbocharged and intercooled
Bore*stroke : 126mm*130mm Electronic Forced double circulation water cooling
Light Diesel \ Gas Gas inlet GVU box pressure :300kPa Fuel consumption rate:≤205g/kW·h
Generator Generator model : SB-HW4.D-120 120KW / 150KVA 50HZ
0.8PF IP23 H
3 phase & 4 wire single brushless
Genset Genset model : CQFJ120J-WQ 120KW / 150KVA 400V
50HZ 216A 1500RPM
Electronic 2410*1168*1591 1200kg
Main Features 1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced China famous brand components in pneumatic parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution
5) Gas(LNG) and diesel oil are mixed or all diesel oil for running
Detailed Images Main Parts Name: gas inlet
Brand:No
Original: China
Function : Stainless steel , LNG enters the genset from this bore
Main Parts Name: ECU
Brand: No
Original: China
Function : In charger of LNG
Main Parts Name: Monitor
Brand: Fortrust power control technology(QIDONG) CO.,LTD
Original: China
Model : FJ4000D4
Function : speed meter; Oil pressure gauge; Water temperature meter; Gas meter; Start / Stop , fresh water high temperature alarm; oil high temperature alarm ; low Oil pressure alarm ; Overspeed alarm ; Low gas pressure alarm; Battery undervoltage alarm;
Main parts Name: Bosch
Brand: Bosch
Original: Germany
Function : Electronic control system
Our Service Pre-Sales Service * Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size 2500 (L) * 1200 (W) * 1600 (D)
Weight 2.15 T
Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipping
Size 20 GP Container
