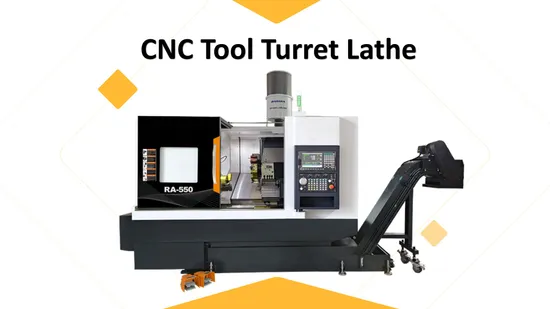

Horizontal Turning Machine Slant Inclined Bed Dual Spindle Metal CNC Combo Milling Machine Lathe

Product Description

Horizontal Turning Machine Slant Inclined Bed Dual Spindle Metal CNC Combo Milling Machine Lathe
Product Description

Processing Capability			Unit	RA-550
Processing Capability	Maximum bed swivel diameter		mm	Φ580
	Maximum machining diameter		mm	Φ450
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	540
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-6
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	270
		Z-Axis	mm	600
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	100-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	460
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	80

Our CNC turret lathe is a cornerstone in the manufacturing industry, seamlessly catering to the processing needs of automotive parts, mechanical components, molds, shafts, wheels, and various metal pieces. Ideal for handling large volumes, demanding high precision, and working with intricately shaped items and diverse materials, this lathe significantly boosts enterprise productivity and competitive edge.
• High-precision machining: Our machine tool is meticulously engineered to meet the most stringent machining standards, delivering exceptional accuracy for ultra-fine cutting tasks. It ensures flawless internal and external precision, roundness, and coaxiality, setting a new benchmark in machining excellence.
• Multiple processes: This versatile machine excels in managing a diverse range of complex and varied processing tasks. From radial and axial cutting to drilling, tapping, hobbing, scribing, and drawing, it offers an all-in-one, robust solution for comprehensive multi-process capabilities.
• Clamping and positioning the workpiece:
The gripper's primary function is to securely hold the workpiece in place, ensuring its fixed position throughout the machining process for unwavering stability.
By guaranteeing meticulous positioning, the gripper ensures the workpiece maintains precise alignment with the cutting tool, delivering superior machining accuracy in every operation.
• Solve special clamping problems:
For machining holes, shafts, slots, and threads in parts that aren't bushings or wheels, our specialized fixtures offer highly effective, tailored solutions.
These specialized fixtures are meticulously crafted to meet specific machining needs, effectively solving clamping challenges that conventional fixtures cannot address.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Immerse yourself in unparalleled processing conditions within a cutting-edge production environment that redefines precision and efficiency.
Our advanced array of imported machinery, including both horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, ensures remarkable precision in every workpiece. This commitment to excellence not only significantly enhances assembly accuracy but also extends the durability and longevity of each product's performance.
• Unmatched Detection Methods
Positioning accuracy is meticulously tested and finely tuned with cutting-edge laser technology, adhering strictly to the German VDI3411 inspection standards (5 rigorous tests per standard).
Every machine tool undergoes exhaustive processing tests before departing our factory, ensuring they surpass actual processing accuracy standards and deliver unmatched performance.
Product sample
• Experience unparalleled efficiency with our Vertical CNC Drilling Machine Center, where state-of-the-art milling, drilling, and tapping functionalities converge seamlessly, ensuring unmatched precision and productivity.
• Master the art of precision with our CNC machine, meticulously engineered to handle a diverse array of materials including aluminum, steel, copper, and even non-metal profiles, guaranteeing exceptional quality and versatility.
• Elevate your production capabilities across a multitude of industries, from 3C electronics and rail transportation to aerospace and linear module guide rails, with our versatile and reliable CNC machining solutions, designed to meet the highest standards.
Packaging & Shipping
•Highly Protective: Our meticulously engineered packaging solutions guarantee that the Vertical CNC Drilling Machine Center arrives at its destination in pristine condition. We provide robust protection that shields your equipment from any potential damage during transit.
•Structural Stability: Designed to uphold the highest standards of structural integrity, our packaging ensures all components of your machine arrive perfectly intact and ready for immediate operation upon delivery.
•Environmentally Friendly and Recyclable: At Dongguan Luotuo Industrial Co., Ltd, we prioritize sustainability. Our packaging materials are not only resilient but also eco-conscious and fully recyclable, significantly minimizing environmental impact while maintaining exceptional durability.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments. A 40% initial deposit is required upon ordering, with the remaining 60% balance due before shipment, ensuring a seamless transaction process.
2. What are your trade terms?
A: Our flexible trade terms include FOB, CFR, and CIF, allowing you the freedom to choose the option that best suits your logistical needs.
3. When is the delivery time?
A: For our standard High Precision Metal Processing CNC Lathe, we guarantee a delivery time of 30 days. Custom or special machines may need additional time, so please refer to our provided delivery schedule when placing your order.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set. We are proud to offer a comprehensive one-year warranty, ensuring your investment is well-protected.
5. How are the machines packaged?
A: Each machine is meticulously packed in a durable wooden case to ensure it arrives at your location in pristine condition, ready for immediate use.
6. How can I choose the most suitable machines?
A: Provide us with your detailed specifications, and our experts will recommend the most suitable model for your needs. Alternatively, you can select the model yourself based on our comprehensive catalog.
Alternatively, you can send us your product drawings, and our team will identify the ideal machine configuration for your specific requirements.

---
