Bogda Auto Spring Loader for Resin Powder Vacuum Conveyor Feeder

Product Description

Product Description

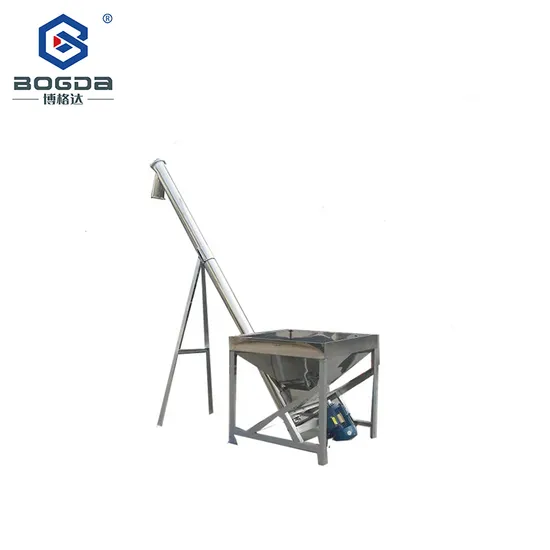

Bogda Granular Auto Vacuum Screw Conveyor Loader Feeder
The Screw Conveyor is suitable for transferring a range of powders or granules from ground level to packaging or filling extruder machines or various applications, the product-feed of the conveyor is controlled to retain the product level in the hopper dryer.

Specification

Model	BGD-600	BGD-1000	BGD-2000	ZD-3000
Charging motor power	1.1kw	1.5kw	1.5kw	2.2kw
Pushing material power	0.55kw	0.75kw	1.1kw	1.1kw
Conveyor Dia.	76mm	102mm	120mm	140mm
Charging capacity	600kg/h	1000kg/h	2000kg/h	3000kg/h
Material tank volume	80kg	150kg	200kg	250kg
Machine weight	100kg	180kg	230kg	300kg

Machine Details
Properties:1- Plastic Material Loader can lift various powder materials,and the material tank and rope are made of stainless steel.2- The material chamber is installed with vibration motor ,and the materials can easily enter into the spiral. 3- The materials feeding motor and vibration motor are controlled with independent switches,and the vibration range is adjustable,the entire screw can be conveniently disassembled and cleaned.4- The machine features automatic feed and automatic stop5- The screw and the material tank and chamber have soft connection with easy disassembly,the lower part of the matrerial canister have flexible door ,forwarding and reserving rotation switch,convenient for cleaning.

Production Process
Packaging & Shipping
Company Profile

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line.
Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically. BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand,Vietnam, Poland, India and so on.
Fast response, good quality, best price and perfect service are our advantages and culture. Certifications
FAQ
1. How many electric, water, air need for the machines?BOGDA: technical department supply the whole layout for workshop details.2. Can I operate machine if don't have experienced engineers?BOGDA: (1) short-time engineers to customer company (5-15 days)(2) Year-time working as requirements3. Any quality checking before shipment?BOGDA: 100% confirm, run and test machines before shipment with quality certificate.4. How long is the guarantee?BOGDA: 12 months since the first day customer operates (except wear parts)5. How can u help us when face some technical problem?BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks. 6. Where can we get spare part? BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens,Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

---
