Automatic Tank Lifting Machine Stock Available/Hydraulic Tank Jacks/Advanced Hydraulic Jacking System/Tank Lifter/Jack for Tank Construction Machinery

Product Description

YT-C type hydraulic storage tank lifting equipment is a set of large hydraulic lifting equipment specially developed by our company for national crude oil reserve project in 1994.As long as the number of hydraulic cylinder and pump station system is increased or decreased, this type of equipment can be applied to the inverted construction of large storage tanks with different volumes ranging from thousands of cubic meters to hundreds of thousands of cubic meters.
The control part adopts Siemens PLC modular design concept, simple operation, reliable quality.The hydraulic cylinder can be used for single or multiple lifting height adjustment, and can also be used for centralized control of multiple groups.Through more than ten years of practice summary, we continue to optimize the equipment, improve the production process, so that the product quality and performance greatly improved, the majority of users praise.

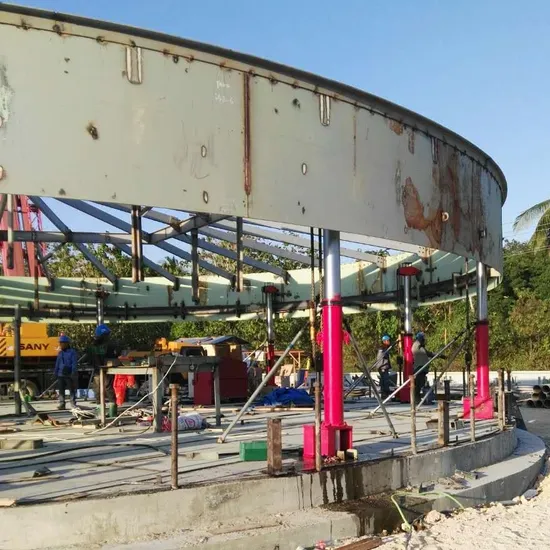

★The overall structure of the equipment 1, The equipment is evenly placed inside the jacked tank. The overall force and lateral force of the equipment are calculated strictly and successfully applied.
2, The structure is rigorous and compact, the output force is adjustable, the jacking speed meets the jacking requirements, and the synchronization accuracy is high.
★Working principle of the equipment The transfer of force: output force of hydraulic cylinder → steel wire rope → rising ring (welded with lifting lug) → rib plate for transferring force → tank wall jacking
Jacking control process:
1, Pump station control box (rotating selection button) → Centralized control operation box (Figure 1-3) → hydraulic jacking pump station (solenoid of valve group) →PLC devices → centralized control operation box → hydraulic jacking pump station → integral or partial lifting or lowering of hydraulic cylinder.
2, Pump station control box (rotating selection button) → control handle → hydraulic cylinder (single or multiple) fine adjustment up and down.
Technical Parameter

Model/Parameter	Max service pressure	Max output force of single hydraulic cylinder	Max stroke of hydraulic cylinder	Hydraulic cylinder lifting speed
YT10-2200C	24Mpa	10T	1250mm	190mm/min
YT10-2700C	31Mpa	10T	1400mm	270mm/min
YT12-2700C	31Mpa	12T	1400mm	250mm/min
YT18-1700C	24Mpa	18T	1240mm	175mm/min
YT18-2000C	24Mpa	10T	1240mm	175mm/min
YT18-3000C	25Mpa	18T	1600mm	187mm/min
YT25-2700C	31.5Mpa	25T	1650mm	175mm/min
YT25-3000C	29Mpa	25T	3200mm	160mm/min
YT30-2700C	29Mpa	30T	2050mm	130mm/min

Model/Parameter	Motor speed	Motor voltage	Motor power	Working environment temperature
YT10-2200C	1440r/min	~380V	5.5kw	-15~50 ºC
YT10-2700C	1440r/min	~380V	5.5kw	-15~50 ºC
YT12-2700C	1440r/min	~380V	5.5kw	-15~50 ºC
YT18-1700C	1440r/min	~380V	4kw	0~50ºC
YT18-2000C	1440r/min	~380V	4kw	0~50ºC
YT18-3000C	1440r/min	~380V	5.5kw	-10~60ºC
YT25-2700C	1440r/min	~380V	5.5kw	-10~60ºC
YT25-3000C	1440r/min	~380V	4kw	-10~60ºC
YT30-2700C	1440r/min	~415V	4kw	-10~60ºC

Notes:Customized
1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.2. We can provide all technical documents and advices to support you for construction procedure clearifications3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.5. We can provide site people training service, and operation service or manpower service or as a subcontractor.

---
