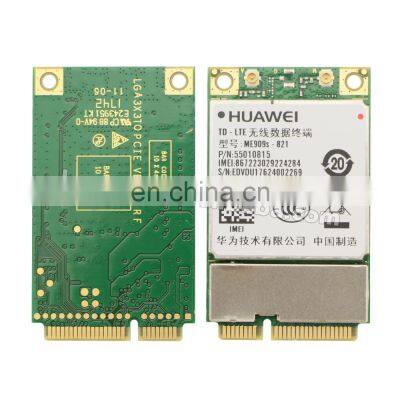

DescriptionLTE Module ME909s-821 PCIeGeneral Features * LTE(FDD): B1,B3,B8; LTE(TDD): B39,B40,B41(38), all bands with diversity * DC-HSPA+: B1,B9,B5,B8; TDS: B34, B39, all bands with diversity * GSM: 1800/900MHz * MIMO LTE: DL 2*2 MIMO HSPA+/DC-HSPA+: DL 2*2 MIMO * Output Power LTE: +23dBm (3GPP TS 36.101 R8 Class 3) WCDMA/HSPA+: +24dBm (Power Class 3) EDGE 1800MHz: +26dBm (Power Class E2) EDGE 900MHz: +27dBm (Power Class E2) GSM/GPRS 1800MHz: +30dBm (Power Class 1) GSM/GPRS 900MHz: +33dBm (Power Class 4) * USIM (Class B and Class C) * Power supply 3.2 V to 4.2V (typical: 3.8V) * Temperature range Operational: -30°C to 75°C Extended: -40°C to 85°C * * Dimensions: 30 mm x 30 mm x 2.57 mm * Weight: approx. 5g * AT commands 3GPP TS 27.007 and 27.005 extended AT command * OS: Linux, Android, WinCE, Windows 8/10Voice Features * DTMF * PCM voiceSupplementary Service * Call forwarding / hold / waiting * USSD Data Features * GPRS: DL 85.6 kbps/UL 85.6 kbps * EDGE: DL 236.8 kbps/UL 236.8 kbps * WCDMA CS: DL 64 kbps/UL 64 kbps * WCDMA PS: DL 384 kbps/UL 384 kbps * HSPA+: DL 21.6 Mbps/UL 5.76 Mbps * DC-HSPA+: DL 43.2 Mbps/UL 5.76 Mbps * LTE FDD Cat4: DL 150 Mbps/UL 50 Mbps * LTE TDD Cat 4: DL 112Mbps / UL 10MbpsSMS Features * MO / MT Text and PDU modeAdditional Features * CDC-ECM * FOTA * Firmware Update via USB * Embedded UDP/TCP/FTP(s)/HTTP(s) stack * High-speed UART * CMUX * Sleep modeInterfaces * 145 pins LGA interface * Antenna interface * UART * USB 2.0 High speed * PCM Voice * SIM Card * LED * Multiple GPIOs * JTAG * Power supply * Power-on/off * ResetApprovals & Certifications * CCC * RoHS & WEEE CompliantWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
