Metal Basket Artistic Ornaments Titanium Nitride PVD Vacuum Coating Machine/ Vacuum Plating Machine

Product Description

Product Description
AHVAC PVD sputtering protective film coating machine is a special set of coating equipment designed for glass coating, metal coating, etc. It completes ion cleaning in a vacuum chamber at one time and then
Physical vapor deposition is carried out to carry out the process of protective film coating. The lamp parts plated by this coating equipment have the advantages of anti-oxidation, corrosion resistance, friction resistance, high-temperature resistance and improved reflectivity.

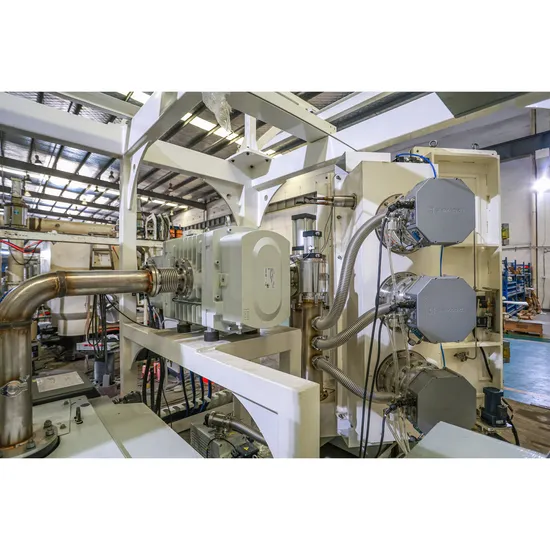

The main body is made of stainless steel, the weight of the whole machine is about 8 tons, the equipment is SV630+WH4400 unit, the pumping speed is fast and the vacuum degree is stable; the high vacuum system adopts molecular pump system to ensure
To prove the stability of sputtering, the unique sputtering process is used to plate semi-transparent aluminum layers, chromium, nickel, gold, rose gold, gray, and other colors, and the film layer has good density and strong adhesion.
The equipment is designed to be integrated for easy mobile installation; the equipment adopts an online monitoring system for easy online management.
PVD is the abbreviation of Physical Vapor Deposition, which refers to depositing materials (target materials or film materials) by physical methods under vacuum conditions.
The technology of vaporizing into gaseous molecules, atoms or ions and depositing them on the workpiece to form a thin film with some special function. Magnetron sputtering coating technology has the advantages of simple equipment and easy control .
It has the advantages of large coating area and strong adhesion and is widely used to prepare multi-material thin films such as metals, semiconductors, and insulators. In addition, magnetron sputtering technology also has the advantages of high speed, low temperature,
The low damage feature makes it suitable for microelectronics and optical chemistry fields.

Product Parameters

Parameter	AHVAC-1100 Double Door	Six-axis AHVAC-1600 double-door model	Dual-axis AHVAC-1600 double-door type	Other models upon request
Furnace size	Φ1100*2000mm	Φ1600*1800mm	Φ1600*1980mm
Rotation diameter of each axis	About 800mm (1 axis)	About 490mm (6-axis)	About 650mm (2 axes)
Total power	About 150Kw	About 165Kw	165Kw
Area	About 30 square meters	About 60 square meters	About 50 square meters
Effective coating height	Take the middle part H=1500mm	Take the middle part H=1300mm	Take the middle part H=1500mm

Application
Glassware, such as glass cup, glass lamps, glass artworks
Table wares, like metal forks and knives.
Golf wares, like golf head, golf pole and golf balls.
Sanitary Products/bathroom wares
Door handles & locksWatches parts, like watch case and beltMetal jewelryLarge size sheet, plate, pipe, tube and so on. Like large stainless steel plate and furnitures.
Company Profile
Laisi Vacuum Technology (Changzhou) Co., Ltd.. is a high-tech enterprise specialized in R& D, production, and marketing of vacuum application equipments. Committed to providing customers with suitable vacuum application solutions.The company focuses on the development of a continuous magnetron sputtering coating production line, flexible and thin film winding coating technology, optical coating technology, and ion plating technology, moreover, including unbalanced magnetron, medium frequency magnetron sputtering, arc evaporation source, ion source assisted coating, electron beam evaporation which can be combined of various technical functions in one equipment. The company combines cutting-edge equipment technology with integrated processes and application expertise for each industry′s specific needs, providing customized process technology and solutions in full accordance with industry technology and production needs.After years of vacuum application technology accumulation, the equipment design and processing technology is improving. The customized vacuum application solution provides powerful technical support for the development of well-known coating manufacturers in domestic and oversea. The vacuum equipment, semiconductor equipment and electronics are developed and produced. Production equipment, optoelectronic equipment, and power battery equipment have been highly praised by customers.Industry application: Widely used in precision optics, solar photovoltaic / optoelectronic, low-emission coated glass, flat panel display, tool and die, ship, car battery, automotive lighting, automotive interior and exterior decoration, smartphones, hardware watches, plastics, semiconductors and other industries.Quality service: The company has a professional after-sales service team, 7 × 18 hours customer service, and rapid response.
Packaging & Shipping
FAQ
Q: Are you a manufacture or a trading company?

A: We are a professional manufacturer, making many kinds of VACUUM coating machines and related accessories.
Our company is located in Jiangsu, China, Which has over a hundred staff, including R&D team, production team, marketing team and after- sale service team.
Q: What kinds of products and colors can this machine be coated ?
A: Metal product (stainless steel, carbon steel, hard alloy, aluminum etc. ), like sanitary appliance, tableware, scissor, stair rail, faucet, watch parts, tool parts, wheel hub etc. plastic product (acrylic sheet, bottle cap, shoe heel, bracelet, lampshade etc. ) ceramic product (ceramic tile, teapot, teacup, plate etc.) glass product (cup, bangle, mirror etc.) Colors: gold, silver, rose gold, blue, black, gray, brown, green, rose red, rainbow etc.
Q: What should I provide to get the machine configuration and quotation ?
A: 1:What is your products? max.size ? material ?
2, How many products do you need to coating per day ?
3:What material do you to coat your products? what colors ?
4: Any other requirements? hardness ? thickness ?
Q: What is your lead time?
A: From 30days to 90days, depend on the machine size

---
