3D Stone Granite Marble Sculpture Carving CNC Machine with Swing Head

Product Description

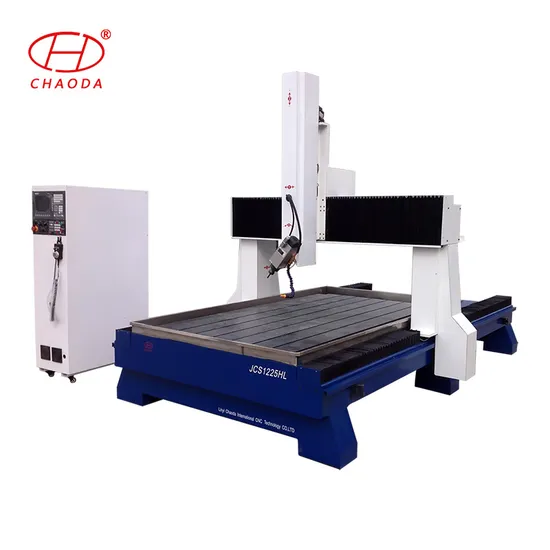

3D Stone Granite Marble Sculpture Carving CNC Machine With Swing Head
Heavy duty steel structure, keep machine with good stability. Adopt good quality machine parts,to make machine with high performance and durability. Spindle rotate 0-180 degree,can make engraving on different angles,like arc-surface milling,bending surface machining for 4D jobs. Advanced Ncstudio control system,very stable and easy to operate. Dust proof,water proof.

Model No.	JCS1225HL
Lathe bed	Heavy duty steel structure
Working size	1200*2500*500mm ± 90 degree
Spindle power	5.5 /7.5 /11KW
Spindle rotating	12000 /18000 /24000rpm
Max travelling speed	30m/min
Max working speed	15m/min
Control system	Nsctudio with screen
Motor	Servo
Oil system	Automatic
Rotary device	option
Voltage	AC380v,3 phase,50/60HZ

It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.

1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery oversea

---
