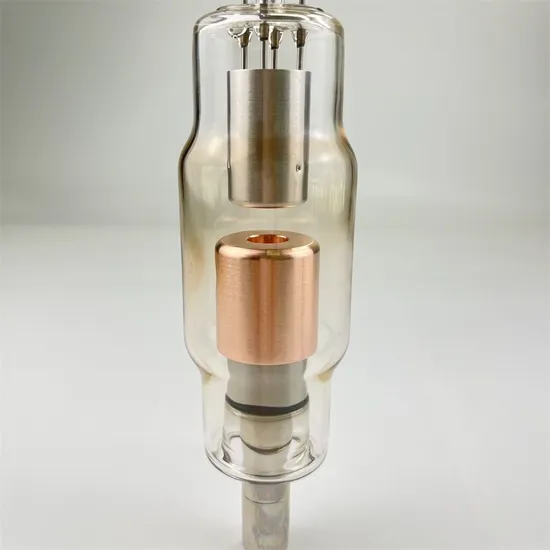

Medical X Ray Tube for X-ray System

Product Description

Product Description
Type:Station anode x-ray tube
Application: For general or mobile x-ray system unit.
Model: XD3-3.5/100
Integrated high quality glass tube
Description:
This tube is especially designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit.XD3-3.5/100 tube has one focus.
The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode. The high anode heat storage capacity ensures a wide range of applications for bone densimeter x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.
Specifications:

Nominal Tube Voltage(self-rectified)	100kV
Maximum power(at 1.0s)	3.5KW
Filament Characteristics	.Ifmax=4.5A,Uf=7.0±0.8V
Nominal Operating Condition
Nominal Anode Cooling Rate	350W
Anode Heat storage Capacity	30kJ
Focal spot	2.6(IEC60336/2005)
Target Angle	19°
Target Material	Tungsten
Cathode type	Tungsten filament
Dimensions	180mm length by 50mm diameter
Weight.	approx.540grams

Competitive Advantage:
Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime
Application:
Our x-ray tube model XD3-3.5/100 can be used on X-ray bone densitometer.
For more type of our x-ray tube, please see the following chart:

BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE
Type	Equivalent	Nominal Focal Spot Value	Max Rating(W)	Max. Voltag(kV)	Max Filament Current(A)	Target Angle ( °)	Anode Heat Content(KJ)	Anode Cooling Rate(W)	Dimension
									Length×Diameter
KL1-0.8-70	CEI OX/70-P	0.8	840	70	2.2	19	7	140	80×30
KL5-0.5-105	CEI OPX/105	0.5	1150(0.1s DC)	105	4	5	30	250	140×42
KL10-0.6/1.8-110	CEI OX110-15	0.6/1.8	880/5200(0.1s DC)	110	3.5/3.5	15	30	250	155×50
KL11-0.4-70	TOSHIBA D-041	0.4	430	70	3	12	4.5	110	67×30
KL20-2.8-105	CEI OX105-6	2.8	6000(0.1s AC)	105	5	19	30	250	145×45
KL21-0.7-70		0.7	N/A	70	3	16	7	210	67×30
KL22-1.8-90	CEI OX90-2	1.8	2200(0.1s AC)	90	4.3	19	25	250	140×42
KL25-0.6/1.5-110	CEI OX110-5	0.6/1.5	800/4000(0.1s DC)	110	4/4.5	12	30	230	135×50
KL27-0.8-70	CEI OX/70-M	0.8	840	70	2.2	19	7	140	72×30
KL32-0.5-80	BRAND X-RAY BX-1	0.5	N/A	95	2.4	12	16	160	125×35
KL54-0.5-100	TOSHIBA D-054	0.5	840/1750(1s,DC)	100	3.5	5	35	250	132×45
XD2-1.4/85		1.5	1400	85	2.5	23	10.2	225	110×35
XD3-3.5/100		2.6	3500	100	4.5	19	35	350	180×50
XD3A-3.5/105X	CEI OX105-4	2.6	3500	105	4.5	19	30	350	175×50
XC65		0.8	600	200	3±0.2	25			195×68
CX6828		0.8	200	160	3.5	25			195×68
CX6838		0.8	320	160	3.5	25			195×68
CX6858		0.8	500	160	3.7	25			195×68

Hot Sales Products
Packaging & Shipping
FAQ1. Are you manufacturer?Yes, we are a professsional manufacturer of x-ray tube in China.Stable quality and foremost service always be the key that we focus on.2. How long is your lead time?Normally it's about 30-40days after order confirmed.3.How about the warranty and services?Provide one year warranty and lifetime technic support.Accept to send our engineer to your country for training in additional cost.Free training one-on-one in our factory for free.4. How long is the guarantee period of the machines? When does it start?The guarantee period of our x-ray tube is one year and a half, calculated the date from when it's delivery date.
During the guarantee period, we provide x-ray tube for free after confirm the defective is due to qualtity problem.

---
