ERW Factory Price Hg 355 Easy Operate Cement Smoking Round Square Carbon Steel Glvnized Pipe Making Machine

Product Description

ERW Factory Price Hg 355 Easy Operate Cement Smoking Round Square Carbon Steel Glvnized Pipe Making Machine

Product Description
The welded pipe unit is a type of equipment used for producing welded steel pipes. It consists of multiple working parts, including the steel strip feeding part, welding part, cooling part, and cutting part. The steel strip feeding section feeds the steel strip into the unit, the welding section welds the steel strip, the cooling section cools the welded steel pipe, and the cutting section cuts the cooled steel pipe into the required length.
Production process flow
Step 1: Un-coiler Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.
There are 3 types: pneumatic, hydraulic and manual.
Step 2: Shear & butt-welding
Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.
2 Types: Automatic & manual
Step 3: Vertical Accumulator
Function: storage strip to keep continue production for the machine to make metel tube.
Type: Vertical
Advantage: easy to operation, low investment. special for small size and light wall pipe
Disadvantage: less storage capacity, crease.
Step 4: Horizontal Accumulator Function: storage strip to keep continue production for the Round Square Pipe Making Machine Production Line.
Type: Horizontal
Advantage: Large capacity.
Disadvantage: more expensive than vertical type

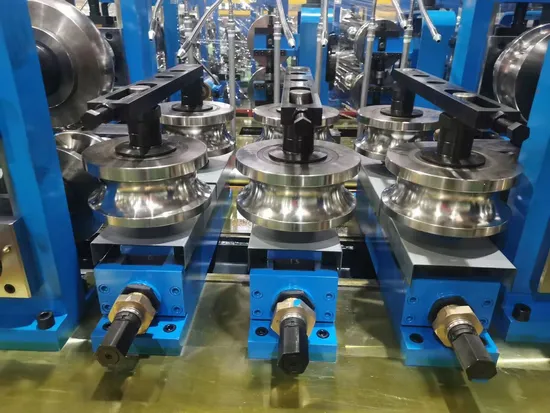

Step 5: Forming section Product Parameters
Below size machine is formal . We also accept customized according to your requirements.

Model	Diameter of welded pipe(mm)	Wall thickness of welded pipe(mm)	Speed of machine(m/min)	Power of main motor(k/w)	High-frequency power(kw)
HG16	8-25	0.25-1.0	30-100	30	60
HG25	8-32	0.35-1.3	30-100	45	100
HG32	13-50.8	0.5-2.0	30-90	110	150
HG50	20-63.5	0.6-2.5	30-90	160	200
HG60	25-63.5	0.8-3.0	20-80	185	250
HG76	25-80	1.2-4.0	20-70	200	300
HG90	32-90	1.5-4.5	20-60	110*2	400
HG115	38-115	2.0-5.0	20-60	160*2	400
HG165	80-165	2.0-6.0	15-50	200*2	500
HG219	90-219	3.0-8.0	15-50	250*2	600
HG273	165-355	4.0-10.0	15-40	250*1 /185*2	800
HG300	165-355	4.0-12.0	15-30	250*2/200*2	1200

Detailed Photos
Certifications

Exhibition display

Packaging & Shipping

FAQ
1. Are you manufacturer or trading company?
We are manufacturer with 30 years experience , Which is located in the base place of this industry Yangzhou city Jiangsu Province ,China .
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
4. How long is the warranty period of your machine?
1 year

---
