New Powder Coating Equipment Gun for Car Wheel /Rim

Product Description

New powder coating equipment gun For Car wheel /rim
electrostatic powder coating spray gun machine

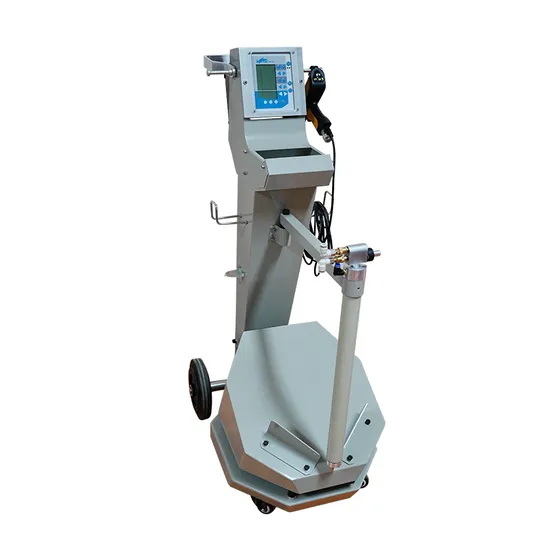

Manual Powder coating System for wheels
Top Quality powder coating spray equipment
Technical Data

Electrical Data
Power Range	220V/110V
Frequency	50HZ/60HZ
Temperature range in use	-10 ºC+50 ºC
Powder Gun
Gun weight	500G
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max
Maximum output voltage	0-100KV (adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Pneumatic Data
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Minimum input-air pressure	4kg/cm
Maximum oil vapor content of compressed air	1.4g/N m3
Maximum compressed-air consumption	13.2 m3/h

Specification &Advantage
1.0-100 Digital Adjustable KV ,Fully Adjustable Amperage
2.With three setting program,flat mode for flat shape workpiece, corner mode for complicated shape workpiece, recoating mode for respraying , easy for operation and suit for both beginners and specialist.
3.Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
4.Comes with Full Array of Nozzle Assortment. Round nozzle and flat nozzle ,suit for different workpiece .
5. suitable for medium and large production capacity
6.Digital Valve Control (DVC) technology ensures precise and reproducible powder output regulations and improves the film thickness consistency.
7.Fast colour changing .if you need change colours very offenly ,choose this vibration type .you just need put original powder box(small box or big box ,both are okay)into the platform .Do not need do the cleaning job when need change powders .Saves a lot of time.
Detail:
Connection drawing
Box type ;suit for fast colour changing .when you need change another colour ,just put another powder box into the vibration platform .do not need take time to clean hopper
Gun Spare parts:Gun Spare parts:
COLO-08 gun ,new design ,only in colo!! ,much lighter ,can work long time with this gun ,feel easily .can adjust the program on the gun ,press this P button .and can adjust the powder output + - .
Package
we have two packages ,wooden box & paper box .If small package ,ship by express ,we will use paper carton .If ship by sea or air ,can choose wooden box and wrapped with the pearl.
Application
Now ,powder coating is a new hottest trend in the industry .many factory choose powder coating ,replacing the liquid paiting because of the economic ,safety ,no pollution and goods effect. It can apply in LPG cylinder/fan /refrigerator/Shelf/door/electric cabinet/aluminum profiles/auto wheels/Fire extinguisher industry.
Customer Visiting&Exhibition
We have went to many exhibitions durning our 11 years running .Also many customers visit our company ,check the goods and discuss to expand our business .
Buying Guide
We can ship this products in 2-3 working days after payment .can choose DHL ,UPS,TNT ,Fedex Express as you like.
If you are interested in this product ,pls feel free to contact us
