5L Electric Vacuum Mixer with Helical Blade and Water Cold Tank

US$3,500.00 1 Piece (MOQ)

Basic Info.

Model NO.

CY-6E

Application Area

Metallurgy&Mineral

Certification

CE, TUV

Condition

New

Mixing Drum Shape

Circular Groove

Stirring Type

Spiral

Working

High Speed Mixer

Rate Power

750W

Rotor Rod Speed

0 -1400 Rpm Variable

Lifting

Electric Motor

Container

304ss

Keywords

Electric Vacuum Mixer

Mixer Type

Powder Mixer

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Box

Specification

Trademark

Origin

Zhengzhou, China

HS Code

8438800000

Production Capacity

310 Sets Per Month

Product Description

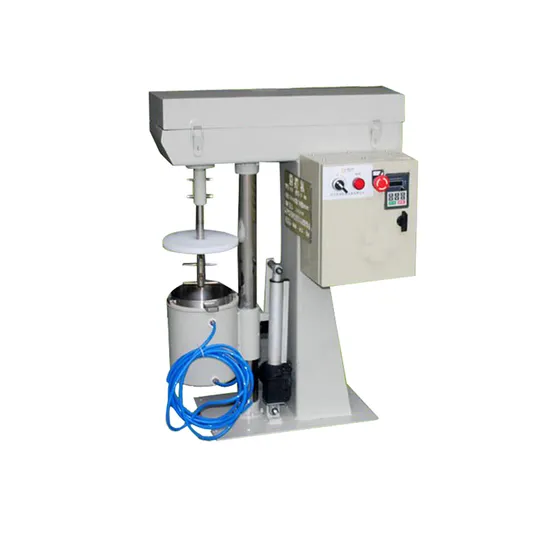

5L Electric Vacuum Mixer with Single Axis Helical Blade and Water Cold Tank
is designed for making large batches (5 liters)
of chemical compounds via blending and mixing in a single container under vacuum driven only by electricity.
It is programmable in speed, time, and rotational direction, and has a stainless steel mixing tank implemented with water cooling to maintain an
efficient mixing process.
This instrument is excellent for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum.
The reduction of gas bubbles will result in better dispersion and uniformity of the processed materials.

Model	Vacuum mixing machine CY-MSK-SFM-6E
Features	5 liter 304 stainless steel container with double layer water cooling jacket. Advanced T type sealing to keep vacuum pressure up to 12 hours. Double Step Rotary Vane Vacuum Pump, is included for immediate operation Container is opened or closed by electric motor (no air pump is required any more) Programmable controller to set time, speed, rotation direction.
Voltage	110-240V AC single Phase, 50/60Hz (build-in frequency converter to ensure the mixer can be used under 50 or 60 Hz)
Rate Power	750 W
Rotor Rod Speed	0 -1400 RPM variable
Lifting	Electric motor ( no compress are pump required any more )
Water Requirement	16 L/min water flow required to cool mixing tank Cooling water 1/4'' Inlet and outlet on the back of the mixing tank (with build-in cooling jacket) (water chiller is not included)
Vacuum Pump	Double Step Rotary Vane Vacuum Pump, is included Vacuum gauge is built in with minimum vacuum level -0.1 MPa
304SS Container Size	270mm O.D. x 210mm I.D. x 230mm H
Dimensions	580mm(L) x 320mm(W) x 1340mm(H)
Net Weight	119 kg (262 lbs)
Warranty	One year limited warranty with lifetime support
