Comprehensive Electrical Properties Tester for Insulation Material Performance

Product Description

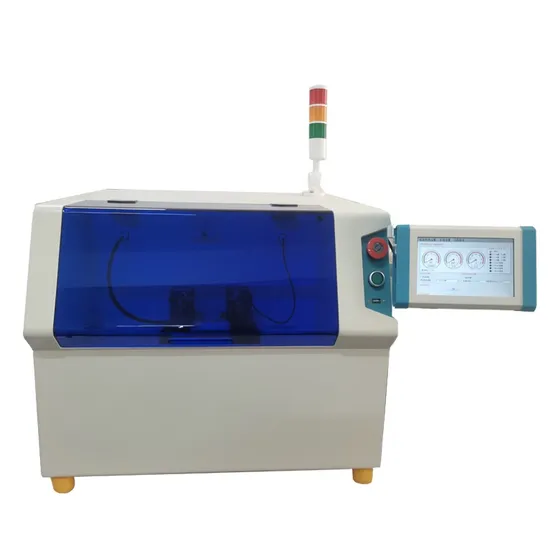

Product Description Arc Resistance Tester NDH-15K
NDH-15KImmerse yourself in the realm of precision testing with our Arc Resistance Test System, meticulously engineered to meet the exacting demands of electrical insulation material examination. This state-of-the-art equipment is a pinnacle of excellence in its field.,it's sthe quintessential choice for analyzing electrical insulation materials, including plastics, films, resins, mica, ceramics, glass, insulating paints, and a multitude of other insulating materials, ensuring superior arc resistance evaluation. It is also an indispensable asset for product testing and exploring the electrical properties of innovative materials.
Application area
PCB
Photovoltaic Film Materials
PTFE, ABS, Nylon, and Other Plastics
Film Material
Insulating Paint
Mica Materials
Ceramic, Glass Fiber, etc.
Detailed Photos
Functional features Our cutting-edge insulation materials exhibit remarkable resistance to degradation caused by high-voltage arc activity. Typically, a standard arc flame initiates carbonization on the material's surface, transforming it until it becomes conductive. The duration for the arc to extinguish is precisely measured in seconds. Utilizing two tungsten electrodes placed at a specific interval on the sample plate,the arc begins intermittently, progressively shortening until it forms a continuous arc as the current increases. The material faces increasingly severe arc conditions, leading to eventual failure. The resistance to arcs is essential for insulating materials in high-voltage switches or low-voltage high-current switches, regularly encountering arcs during usage. Only materials demonstrating exceptional arc resistance are suitable.
In the realm of electrical and electronic devices, insulating materials exposed to high-voltage, low-current arc discharges exhibit distinctive surface damage variations near the arc. These discharges cause localized thermal and chemical deterioration and corrosion, eventually creating a conductive pathway on the material. Once a conductive channel forms, the material is deemed to have failed the test.
The Arc Resistance Tester is aligned with standards such as GB1411, IEC61621, ASTMC495, UL746A, making it an essential instrument for conducting simulated safety testing procedures.
Engineered to meet rigorous standard requirements, the arc resistance tester features comprehensive electrical schematics and high-precision electrodes.
Product Parameters

Arc on/off time error	All program segments are superior±1ms	Voltage regulator capacity	1kVA
Rated test voltage	12.5kV	Maximum test voltage	15kV
Electrode pressure on sample	(0.5±0.05)N	Electrode material	Tungsten bars
Test voltage accuracy	<1.5%	Current measurement accuracy	<1.5%
Distance between electrodes	(6.35±0.1)mm(IEC) (6.0±0.1)mm(ASTM)	Ambient temperature	(23±2)ºC
Ambient humidity	(50±5)%	Power supply	220V±5% 50Hz 10A

Program segment	Arc current mA	Arc on&off time /s		Duration of each program segment/s	Total test time/s
		IEC 61621	ASTM D495
1	10	1/8son 7/8s off	1/8son 7/8s off	60	60
2	10	1/4s on 3/4s off	1/4s on 3/4s off	60	120
3	10	1/4s on 1/4s off	1/4s on 1/4s off	60	180
4	10	Continuous power on		60	240
5	20	Continuous power on		60	300
6	30	Continuous power on		60	360
7	40	Continuous power on		60	420

Note:Ensure all instruments and equipment are properly grounded, maintaining grounding resistance at ≤4Ω. ,The Supply and Demand parties agree that the supplier will provide technical specifications while the demander is responsible for establishing their own grounding system.
