US$45,000.00-85,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
1.0~1.5m³
Certification
CE, ISO9001: 2000
Main System - Maximum Flow
442 L/Min (116 Gal/Min)
Operating Weight
21900 Kg
Bucketshipping Dimension
9530*3170*2950 mm
Counterweight Clearance
1050 mm
Maximum Digging Depth
6720 mm
Maximum Cutting Height
9450 mm
Transport Package
by Roro, Bulk Cargo or Container Transprot
Production Capacity
50 Uint/ Month
Product Description

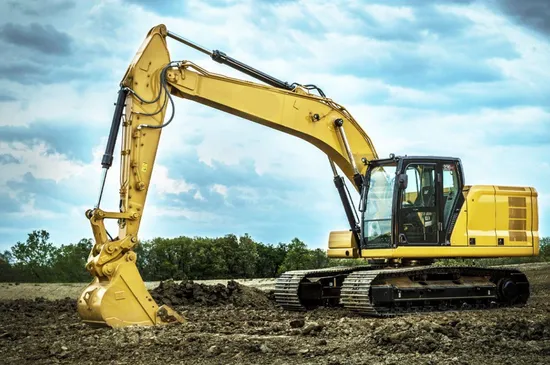

22 Ton 1cbm Hydraulic Crawler Excavator 320GC
Features
PERFORMANCE WITH LESS FUEL
* The excavator uses up to 20 percent less fuel than the 320F in similar applications.
* Match the excavator to the job with power modes; let Smart mode automatically match engine and hydraulic power to digging conditions.
* The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
* Valve priority puts hydraulic pressure and flow where you command it to go for fast light to medium load cycle times.
* The engine meets U.S. EPA Tier 4 Final and EU Stage IV emission standards with an after treatment system that requires no operator input or downtime.
* Add auxiliary hydraulics to do more work with a range of attachments.
* Product comes standard so you can remotely monitor machine health, location, hours, and fuel consumption on demand online interface. Parameters
Model
| 320GC
|
ENGINE
|
|
Net Power
| 109 kW
|
Engine Model
| C4.4e TA
|
Bore
| 105 mm
|
Stroke
| 127 mm
|
Displacement
| 4.4 l
|
HYDRAULIC SYSTEM
|
|
Main System - Maximum Flow
| 442 l/min (116 gal/min)
|
Maximum Pressure - Equipment
| 35000 kPa
|
WEIGHTS
|
|
Operating Weight
| 21900 kg
|
DIMENSIONS
|
|
Boom
| Reach 5.7 m (18'8")
|
Stick
| R2.9B1 (9'6")
|
Bucket
| 1.00 m³ (1.31 yd³)
|
Shipping dimension
| 9530*3170*2950 mm
|
Counterweight Clearance
| 1050 mm
|
Track Gauge
| 2200 mm
|
WORKING RANGES & FORCES
|
|
Maximum Digging Depth
| 6720 mm
|
Maximum Reach at Ground Level
| 9860 mm
|
Maximum Cutting Height
| 9450 mm
|
Maximum Loading Height
| 6490 mm
|
Minimum Loading Height
| 2170 mm
|
Bucket Digging Force - ISO
| 129 kN
|
Stick Digging Force - ISO
| 99 kN
|
