Jc-200 EPE Foam Machine for Mattress Hot Seller Extruder Machinery

Product Description

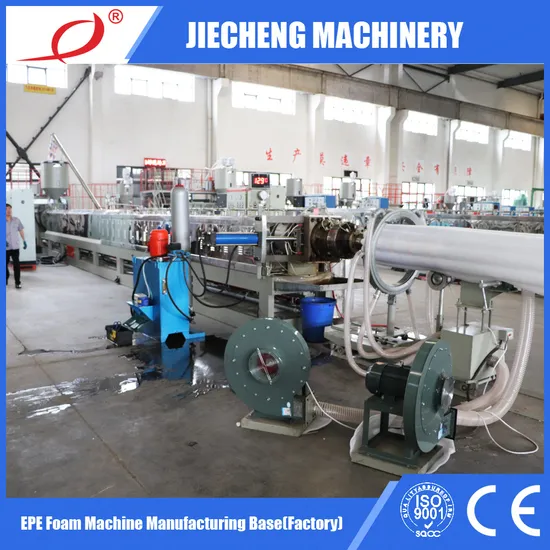

1. EPE foam manufacturing base factory picture
2. Machine Pictures Show


3. Machine General Introduction
This machine is an advanced structure with reliable performance and high-grade automation. It is easy to handle and maintain, and its output is high, being the preferable model compared with the domestic similar machine in performance and price. The products made by this equipment are widely applied to the packing industry, such as the electronic circuit board, electric products, high-grade furniture, motorcycles, shoes-making, wooden floor, cases and bags, hardware, bicycles, automobiles, pottery, glass wares etc.
4. Machine Technical Specification

Model		JC-90	JC-105	JC-120	JC-135	JC-150	JC-170	JC-180	JC-200	JC-220
Screw diameter	mm	90	105	120	135	150	170	180	200	220
Width	mm	2200	2200	2200	2200	2200	2200	2200	2200	2200
Thickness	mm	0.3~4	0.5~6	0.8~8	1~10	2~12	2~14	5~16	10~25	10~25
Output	kg/hr	60-80	80-150	120-160	150-180	200-350	300-450	350-500	500-650	650~750
Foaming additive	EPE Butane gas, GMS, EPE foaming masterbatch
Installed capacity	kw	63	68	98	132	168	198	268	298	315
Installed dimension	mm	18×2×2.4	18×2×2.4	23×2×2.4	26×2×2.4	26×2×2.4	28×2×2.4	30×2×2.4	32×2×2.4	35×2×2.4

5. Our machine Advantages
1. Guarantee: 2 years
2. Certificate: CE, ISO
3. Energy saving 30-40%
4. Sharing 85% domestic market
5. Delivery: 35 working days
6. Running machines every day

welcome to inquiry us, and we have machines are running 24 hours.

---
