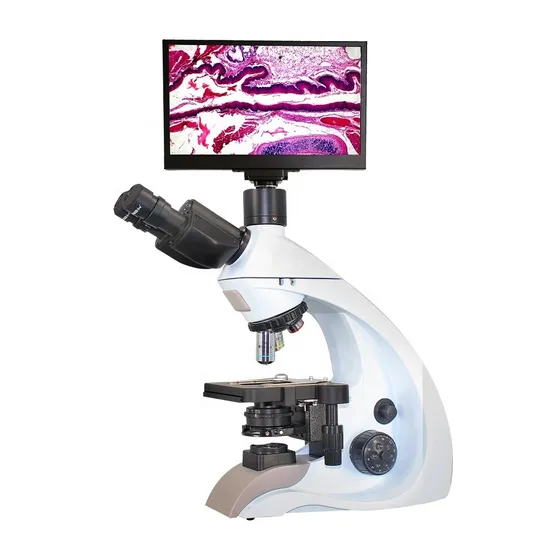

Boshida Bd-SW35t-13C 40X-1000X Dark Field Biological Microscope with 13 Inch LCD Screen

Product Description

Products Description

Optical system	NIS45 Infinity Plan achromatic system
Observation Methods	Standard: Brightfield. Optional: Dark field, phase contrast, polarizing, Fluorescence
View tube	Binocular/Trinocular , 30 ° inclined, 360°rotating IPD adjustment: 47mm ~ 78mm Diopter adjustment: ± 5 diopters Splitting ratio: 50: 50.
Eyepiece	Wide field PL10 × (Φ20mm) Optional: WF16X
Objective	Infinity Plan achromatic objective: Standard: 4X/0.1, 10X/0.25, 40X/0.65(spr), 100X(spr.,oil). Optional: 20X
Nosepiece	Quintuple(5-position).
Stage	Double layer Mechnical Stage size:150×140mm. XY Moving range: 76mm ×52mm, with stopper. Moving Precision: 0.1mm. Vernier scale on both axes of movement with an accuracy of 0.1 mm. Double slides clips.
Focusing mechanism	Coaxial coarse and fine focusing system. Coaxial Coarse 37.7 mm per circle. Focusing stoper for protecting the lens and specimen. Tension adjustment of coarse regulation knob. Fine adjustment accuracy :0.002mm.
Illumination	Transmission Kholer illumination system. 1W LED, intensity adjustable.
Condenser	NA1.25 Abbe condenser, with aperture iris diaphragm. Optional: Dark field conderser.
Camera adapter	0.5X or 1X C-mount.
Optional camera and screen	13 inch HD screen with 5MP built-in camera. With image software for image saving, video recording, measurement.
Power supply	AC100-240V, 50/60Hz

ABOUT US FAQ Q1 How can you do sample testing? A1 We can suggest microscope according to applications of user. We had thousands of sucessful cases.If user is not sure of the microscope image quality, user can send us samples for testing. We will send pictures to user. If user is not satisfited with it,don't need to buy it.
Q2 What kind of customization you can supply?
A2 Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget.For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements. Support OEM & ODM
1. Free sample testingWe can test sample of user and help user to choose the most suitable microscope according to applications and requirements. 2. Online trainning. 3. Life time technical service. 4. Free SolutionsWe can suggest solutions according to applicatins and requirements. 5. CustomizedWe can customize products according to applicatins and requirements.
Warranty
1). We provide one year warranty for whole machine, three month for consumable spare parts.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.

---
