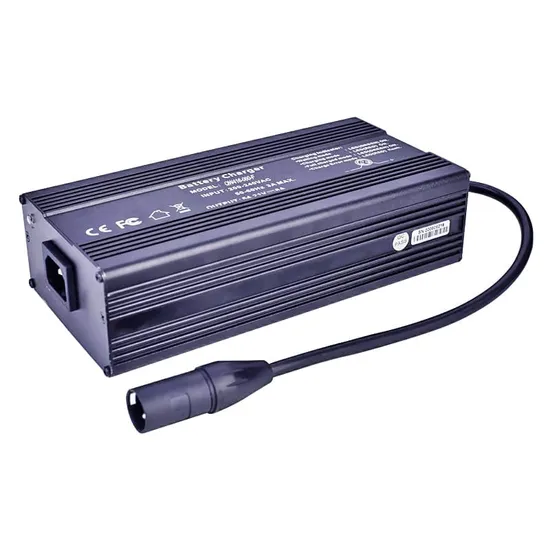

360W Battery Chargers 16s 48V 51.2V 5A 6A LiFePO4 LiFePO 4 Outdoor Charger DC 57.6V/58.4V 5A 6A IP54 IP56 Waterproof Chargers SAA Rcm Ukca UL

Product Description

Quick Detail:
Brand Name:QUAWIN
Model Number:QW512-060-FA
Use:16S 48V/51.2V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 58.4V
Color:Black/Silver
Shell Material:Aluminium alloy
Protection grade:IP54/IP56
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:58.4V
Output current:6a(Max)
Output power:350.4W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Certification:CB CCC CE C-TICK FCC GS ICES KC PSE SAA RCM UKCA UL

Packaging & Delivery :
Inner package:Corrugated box,EPE pearl cotton/according to your requirements
Outer packing: export carton
Delivery Detail:sample within 7 work days,25-35 days for bulk order

Specifications:
16S 48V/51.2V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Glue pouring process and metal shell cooling design
• Efficiency(at 100% load): >=90%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH

Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 58.4V
• Charging current: 6a(Max)
• Dimensions (mm): 204*100*55
• Weight: 2000±50g(only body)

Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
• Overheating protection

LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH

Call us to know more details datasheet.

Typical Product Model
Model		Input Voltage (V)	Battery Voltage (V)	Charging Voltage (V)	Charging Current (A)
QW128-200-FA	LiFePO4	AC 100~264V	12.8(4S)	14.6	20
QW256-120-FA			25.6(8S)	29.2	12
QW384-080-FA			38.4(12S)	43.8	8
QW512-060-FA			51.2(16S)	58.4	6
QW640-050-FA			64(20S)	73	5
QW768-040-FA			76.8(24S)	87.6	4
QW148-200-LA	Lithium		14.8(4S)	16.8	20
QW259-120-LA			25.9(7S)	29.4	12
QW370-080-LA			37(10S)	42	8
QW481-060-LA			48.1(13S)	54.6	6
QW629-050-LA			62.9(17S)	71.4	5
QW740-040-LA			74(20S)	84	4
QW120-200-SA	Lead Acid		12(1S)	14.7	20
QW240-120-SA			24(2S)	29.4	12
QW360-080-SA			36(3S)	44.1	8
QW480-060-SA			48(4S)	58.8	6
QW600-050-SA			60(5S)	73.5	5
QW720-040-SA			72(6S)	88.2	4

---
