US$2,100.00-3,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture
Inlet Dimension
1100*700mm
The Dimension of Screen
3340*640mm
The Diameter of Roller
600mm
Transport Package
Wooden Case
Production Capacity
200set/Month
Packaging & Delivery
Package Size
655.00cm * 200.00cm * 180.00cm
Package Gross Weight
900.000kg
Product Description
Product Description

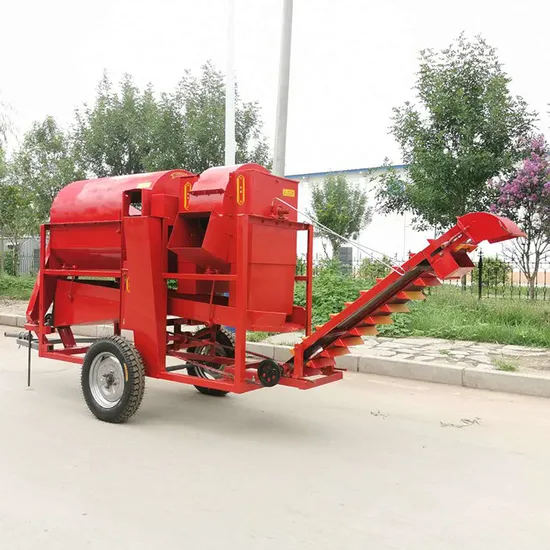

Peanut Picking Machine Description: The large peanut picker has big wheels,It can easy to move.
This groundut picker is professional for picking peanuts.
By placing the peanut stalks manually,the peanuts and straws will be automatically separated.
The leaves and grass will be discharged through the induced draft fan.
Peanut stalks are peeled off cleanly, and the cleaning rate is high.
The breaking rate is low, which becomes high quality peanuts. Product Parameters
Model
| ST-1800
|
Power
| 22kw motor ,28 HP diesel engine or ≥35 HP tractor
|
Rotation speed of roller
| 550r/min
|
Loss rate
| ≤1%
|
Broken rate
| ≤3%
|
Impurity rate
| ≤2%
|
Capacity
| 1100kg/h
|
Inlet dimension
| 1100*700mm
|
The height from inlet to ground
| 1050mm
|
Weight
| 900kg
|
The model of separation and cleaning
| Vibrating screen and draught fan
|
The dimension of screen
| 3340*640mm
|
Dimension of machine
| 6550*2000*1800mm
|
The diameter of roller
| 600mm
|
The length of roller
| 1800mm
|
Machine application
Installation Instructions
The advantage of the machine 1. The wet and dry peanut picker is suitable for separating the seedlings and fruits of the excavated peanut.
2. After fruit picking and selection, the flowers and fruits are clean and free of sundries. After drying, they can be directly
bagged for storage.
3. Convenient operation, reliable performance, clean fruit picking, high efficiency, less crushing, small power matching.
4. The machine can also be operated with the tractor (diesel engine) by the belt link, and the machine speed can be controlled to greatly reduce the crushing rate of the chemical production
