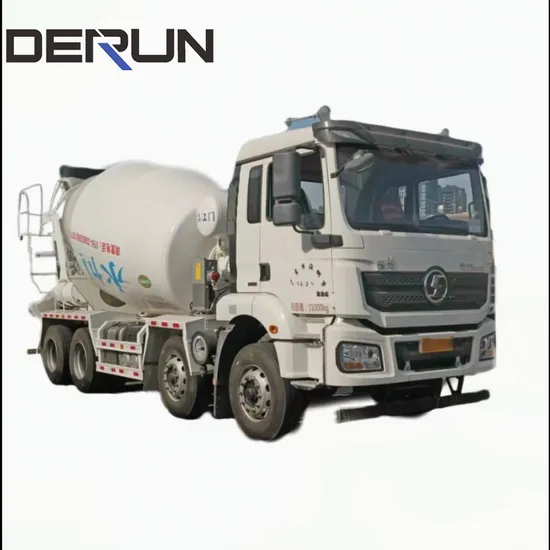

Concrete Mixer Truck Drum Cement Truck Transport Truck Manufacturer Construction

Product Description

Concrete Mixer Truck Drum Cement Truck Transport Truck Manufacturer Construction The Concrete Mixer Truck is a powerful and reliable solution for the construction industry. Its combination of high horsepower, large mixing capacity, and advanced features makes it an ideal choice for contractors looking to maximize productivity and efficiency on their construction sites. With Sinotruk's renowned reputation for quality and durability, this truck is sure to provide years of reliable service.

Parameters
Drive Type	8x4
Cab
Type	F3000 Cabin
Equipment	with Air Condition,One sleeper
Weight
Kerb mass(kg)	13240
GVW(kg)	13240+25000
Dimensions
Max. length(mm)	9130
Max. width(mm)	2500
Max. height(mm)	3950
Front/Rear overhang(chassis)	1525/2055
Wheel base(mm)
Track width(mm)	2036/1808
Mixing capacity
6-12 m³	Italy TOP P68 reduction gears, 089 pump
Steel (mm)	5mm
Performance
Max. speed (km/h)	90
Max. gradeability(%)	30
Approach/Departure angel(°)	20/19
Engine
Brand	WEICHAI
Model	WP10/12
Power (kw/hp)	336hp-420hp
Max torque (N.M)/rpm	1360/1400--1600
Displacement (L)	9.726/11.596
Emission Standards	Euro II/III
Transmission
Brand	FAST
Model	12JS160T
Control type	Manual
Gear Shift	12-forward & 2-reverse speeds
Clutch	Single plate,diaphragm spring
Diameter (mm)	Φ430
Action	Hydraulically operating with air assistance
Brakes	Drum
Service Brake	With dual-circuit compressed air brake
Park Brake	Power spring brake acting on rear wheel
Auxiliary Brake	WEVB
Steering	Technology
Suspension
Front	Longitudinal leaf spring
Rear	Inverted leaf spring stabilizator suspension
Axles
Front	MAN : 7.5 ton
Rear	MAN : 16 ton
Ratio	4.7/5.2/5.9
Tyre	12.00R20/22.5
Fuel Tank	300/400L
Material	Aluminium Alloy
Electrics
Type	24V
Starter	5.58kw(24)
Generator	2.0kw(28V 70A)
Battery	2x135Ah

1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.Why should you buy from us not from other suppliers?
We have exported Sinotruk products to more than ten countries, with annual sales exceeding 500 units. All Sinotruk products
exported by our company are produced by Sinotruk factories and enjoy official maintenance services.
3.Do you arrange shipment for the vehicles?
Yes, we can arrange shippment based on trade terms.
4. What's your MOQ? 1 unit.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese.

---
