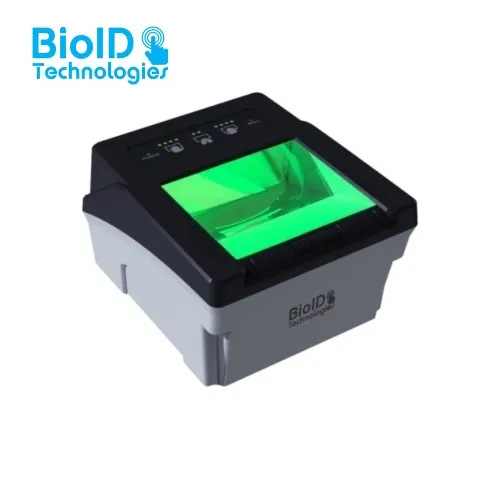

The BioSlap is the compact FAP60 ten-print scanner FBI's certified to capture 4-fingers slap, two thumbs (known as 4-4-2 mode) or rolled fingerprint simultaneously. The BioSlap employs the most advanced optical technology and dedicated special light sources that allows high speed fingerprint capturing and seamless image processing, which ensure the best image quality for slap prints as well as for rolled fingerprints. The BioSlap is absolutely your logical choice for all your civil or criminal identification applications. Contact us for more information.
| Fingerprint Types | Four finger slaps, two thumbs, single flats, single rolls |
| Image Size | 3.2" x 3.0" (1600 x 1500 pixels) for slap |
| 1.6" x 1.5" (800 x 750 pixels) for rolled |
| Platen Scanning Window | 3.6" x 3.2" (92mm x 81mm) |
| Image Quality | FBI's IAFIS IQS Appendix-F certified |
| Resolution | 500 dpi, 256 gray levels |
| Image & Template Format | BMP, WSQ, ISO/IEC 19794-2/4 |
| Acquisition Mode | Auto capture & manual mode |
| Smart Indicators | Intuitive 4 LED interface |
| Buzzer | On board programmable buzzer |
| MTBF | More than 50,000 hours |
| Dimensions | 160mm(L) x 135mm(W) x 90mm(H) |
| Weight | 1.2 kg |
| Interface | USB 2.0 for data transfer & power supply |
| Operating System | Windows, Linux, Android |
| Software & SDKs | Scan demo, essential APIs, . NET, Java, C++, OCX |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity Range | 10% to 90%, non-condensing |
