Automatic Single /Double PE / PLA Paper Cup /Paper Bowl Machine Producer

Product Description

Manufacturrer of Automatic coffee/ milk/ hot/cold drinking paper cup forming /making machine
speed 56-60pcs/min PLC control PE/PLA coated paper cup machine

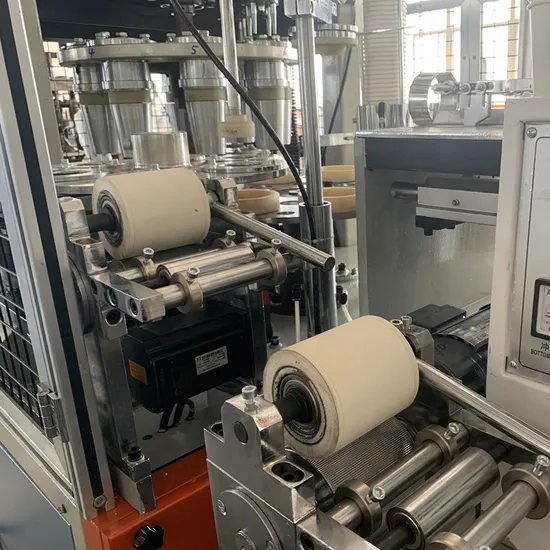

3600A automatic paper cup forming machine is our latest machine,which is made base on our manufacturing experience and advanced technology from oversea countries, it is a pioneer equipment . The machine comes with rectangle tube and channel steel welding structure, which is stronger and small deformation, automatic lubrication system, which makes all mechanical parts working much more smoothly. The cup bottom adopts the stretching die which make the bottom sealing quality better and less leaking percentage. It has PLC control, sensor failure detecting system, cup bottom paper feeding controlled by servo motor, bottom paper will be delivered when cup tube comes, otherwise no bottom paper delivery. The machine has safety guard to protect the people working safely, it is the best choice for making paper cups. Technical Data:

Cups Specifications:	2-32oz
Paper Specifications:	180-350g/m²
Speed:	55-60pcs/min
Power supply :	380v 50Hz /220 50HZ
General Power :	8KW
Gas source:	0.3-0.5m³/min
Weight:	2500kg
Packing Dimensions:	2600x1200x1580mm(LxWxH)

---
