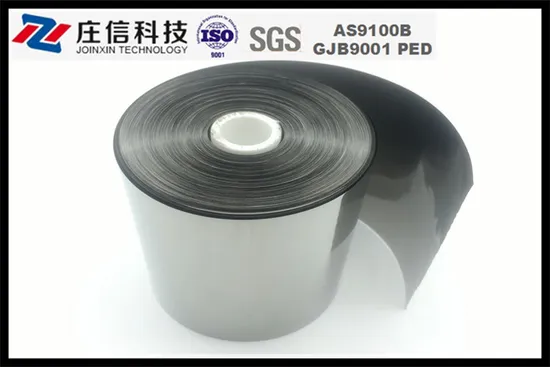

Bt6 Grade 5 Gr5 Titanium 6al-4V Titanium Coil Strip

US$15.00-45.00 100 Pieces (MOQ)

Basic Info.

Model NO.

Titanium Coil

Technique

Cold Rolled

Grade

Gr5 Gr7 Gr9 Gr11 Gr12 Gr23

Shape

Titanium Strip

Density

4.5g/cm3

Surface

Turned/ as After Forging

Purity

99.5% - 99.8%

Thickness

0.03mm 0.25mm 0.5mm or Customized

Wideness

800~1560 mm or Customized

Industry Standard

GB/T 3622 ASTM B265

Quality Control

ISO9001; Gjb9001; As9100b; PED

Transport Package

Wooden Box

Specification

Dia3~300mm

Trademark

ZX. TIG

Origin

Shaanxi, China

HS Code

8108901020

Production Capacity

60000t/a

Product Description

BT6 Grade 5 Gr5 Titanium 6AL-4V Titanium Coil With its excellent strength to weight ratio, titanium provides outstanding corrosion protection in highly oxidizing environments in the aerospace, chemical processing and medical industries. Commonly used for industrial applications and the construction of titanium process equipment, titanium coil can be cut to non-standard sizes, lessening the amount of welding required for certain projects. It's often used to create: Tray liners and baskets for chemical processing Heat exchangers Medical equipment Storage and process tanks Fabrication

Product name	Specifications
Titanium Ingots	Ф360mm~Ф1020mm,the maximum weight is up to 12t
Titanium Slab	(80~400)mm×(~1500)mm×(~2600)mm
Titanium Forgings	Weight per piece≤2000kg
Titanium Hot-rolled plates	(4~100)mm×(800~2600)mm×(2000~12000)mm
Titanium Cold-rolled plates	(0.4~4.0)mm×(800~1560)mm×( ~6000) mm
Titanium Foil / Strips	(0.4~2.0)mm×(800~1560)mm×L
Titanium Tubes / Pipes	Ф(3~114)mm×( 0.2~5)mm × (~15000)mm
Standards	GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт
Titanium Grade	GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4

Titanium and alloy products

Category	Material	Dimension(mm)	Specification
Ti & Alloy ingots & bars	CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, Etc.	Standard or customized	GB/T 2965, ASTM B348
Ti & Alloy castings			GB/T 6614, ASTM B367
Ti & Alloy forgings			GB/T 25137, ASTM B381
Ti & Alloy plates			GB/T 3621, ASTM B265
Ti & Alloy strips & foils			GB/T 3622, ASTM B265
Cold rolled Ti & Alloy strip coils			GB/T 26723, ASTM B265
Ti & Alloy wires			GB/T 3623, ASTM B863
Ti & Alloy seamless tubes			GB/T 3624, ASTM B861
Ti & Alloy welded tubes			GB/T 26057, ASTM B862
PM Ti & Alloy components			GB/T 6887, ASTM B817

Production Process
Equipment
Why Choose Us 53 years of titanium R&D and production experience Leading titanium manufacture in China State-owned company with great credit and strong financial strength Cost control-manufacturing and exporting by ourselves Competitive price-without middleman Strict quality control system On time delivery
