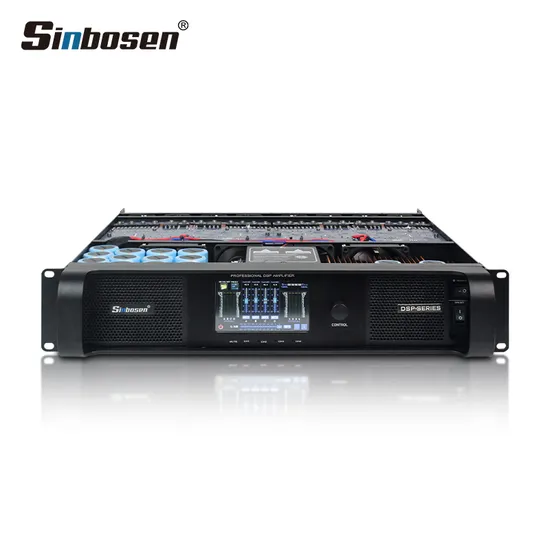

Sinbosen Professional Audio 2000 Watts DSP Amplifier DSP10000q Sound System Power Amplifier Moudle

Product Description

Sinbosen New Cooling Professional DSP Amplifier DSP10000q Sound System Power Amplifier

		DSP-10Q	DSP-12Q	DSP-20Q	DSP-22Q
8Ω Stereo Power (RMS)		1350WX4	1500WX4	2200WX4	2500WX4
4Ω Stereo Power (RMS)		2100WX4	2800WX4	4000WX4	4650WX4
8Ω Bridged Power(RMS)		4200WX2	5600WX2	8000WX2	9500WX2
4Ω Bridged Power(RMS)		5000WX2	7000WX2	10000WX2	15000WX2
Analog inputs		4 x XLR balanced
Analog outputs		4 x XLR balanced
Digital input		1 x AES/EBU; 0dBFs=+21dBu
THD+N distortion		≤0.005 @1kHz 20dBu ≤0.004 @1kHz 0dBu
Signal-to-noise ratio (A-weighted)		>117dB
Maximum input level		>20 dBu
Maximum output level		>14 dBu
Frequency response		20Hz - 20kHz; -0.5dBu at 20Hz and 20kHz

Feature:
1. 4 Channel Class TD Switching power amplifier with DSP
2. 4 x 1,350 Watts into 8 Ohms,4 x 2,100 Watts into 4 Ohms
3. Create SUPER sound quality
4. Control the sound effect by Touch on front 4.3" LED display screen Or control the sound effect by Computer
5. Simple DSP software,no need install,easy operate it
6. Bridge-mode operation for Touring Applications
7. Comprehensive protection scheme
8. Use high quality capacitor 12pcs 3300uf 200V +4pcs 2200uf 200V
9. Use Original ONSEMI transistor
10. Original Neutrik XLR*/Speakon connectors
11. Extended heatsink board to 95 mm
12. Temperature protection;Over current protection;Short circuit protection built-in
