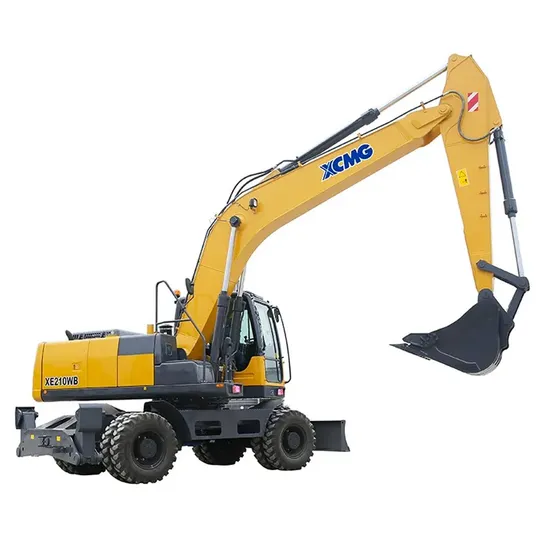

21 Ton Xe210wb Wheel Excavator with Versatile Tilting Bucket

Product Description

Product Description
*With its excellent stability, high mobility, first-class digging force and two kinds of working equipment options (single and double boom), XE210WB wheeled hydraulic excavator is strong enough to cope with a variety of working environments.
* Adopt the dozer blade that can move in parallel and the assistant stabilizing outrigger to improve the stability of the machine support. The outrigger and dozer blade in contact with the ground are carefully designed to prevent damage to the asphalt pavement.
* The advanced wheel brake system makes the machine brake more effectively. It eliminates the rocking effect of the machine on the wheels when excavating. The transmission and axle integrated braking system can ensure the safety and meanwhile minimize the vibration of the whole machine, and effectively improve the braking stability.
* It is widely used in the earthwork construction of city water, municipal engineering, pipeline maintenance engineering, civil engineering, industrial material loading and unloading, tunnel excavating, water conservancy engineering, urban demolition and relocation.

Product Parameters

Model	XE210WB
Operating weight	20500kg
Bucket capacity	0.86m³
Model	QSB7
No.of cylinders	6
Rated power/speed	135/2050kw/rpm
Maximum torque/speed	740/1200N.m
Displacement	6.7L
Travel speed(H/L)	31/9.5km/h
Swing speed	13r/min
Gradeability	≤30°
Arm digging force	100kN
Main pump	Two piston pumps
Rated flow	2×220L/min
Main safety valve pressure	31.4/34.3MPa
Travel system pressure	31.4MPa
Swing system pressure	28MPa
Pilot system pressure	3.9MPa
Fuel tank capacity	305L
Hydraulic tank capacity	202L
Engine oil capacity	17.5L
Total length	9597mm
Total width	2552mm
Total height	3590mm
Width of platform	2490mm
Total width of chassis	2495mm
Wheel base	2850mm
Counterweight clearance	1250mm
Max. digging height	9000mm
Max. dumping height	7000mm
Max. digging depth	6460mm
Maximum depth cut for 2240mm(8 ft) level bottom	6285mm
Max.vertical digging depth	5810mm
Max. digging radius	9840mm
Min. swing radius	2820mm
Boom Length	5700mm
Arm Length	2900mm
Bucket Capacity	0.86m³
