5m Retractable Electric Fence Gates Iron Outdoor Automatic Fence Gates Aluminium Folding Sliding Doors Trackless Telescopic Sliding Gate Main Driveway Gate

Product Description

Specification:

Product Name	Telescopic Sliding Gate
Gate Dimension
Width Min./Max.	Single Leaf: 1 000mm-6000mm
Height Min./Max.	1 000mm- 2 500mm (Large Dimension on Request)
Max No. of Leaves	5 Leafs
Opening Direction	Horizontal
Gate Structure
Outer Frame	Heavy Duty Square Section (or Customized design available on request)
Sliding Mechanism	Specially designed Telescopic Mechanism
Rollers	Bottom Wheel with both side bearings
Guide Rollers	Nylon Rollers with Bearings. Mounted on column for support& smooth movement o siding gate
Patterns/Designs
Gate Material	Aluminum Alloy Profile
Surface Treatment	Powder Coated
Options Available	Spikes as per customized requirement Wicket gate/Side Gates in the similar pattern as the main gate Any type of Customized Design can be made on request.

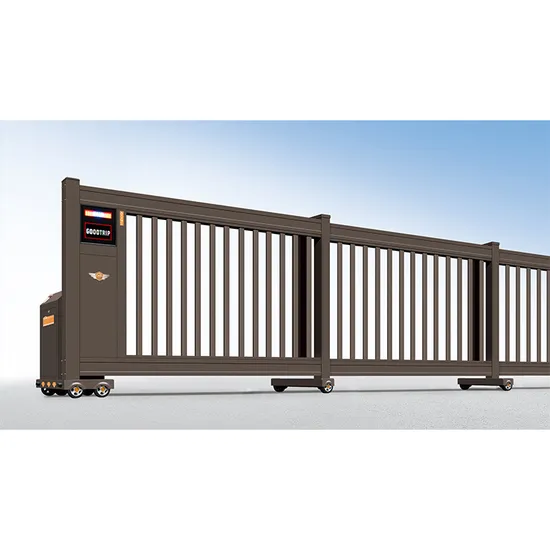

Telescopic Sliding Gate
· Modern design and robust construction
· Ideal for spaces that are restricted or tight.
· Reduce the run back required by 75%, compared to a single leaf gateSliding Mechanism
· Clear opening up to 30 m
· Gate can be designed in 2-5 leafs for single side slide motion
· Partial opening can be easily achievedControl System
· Gate motor complete with manually clutch
· Integrated inverter guarantees you with a fast, silent and low-wear movement
· High precision sprocket & chain mechanism, ensures smooth & safe operation of gate
Technical Specification1)Telescopic sliding gates are widely used and economical option among all types of gates.
2)High opening and closing speed as compared to other sliding gates.
3)Gates are available in single side or double side sliding suggested to suit actual site condition.
4)Top Nylon guide rollers with bearings are used for smooth operation & to guide moving leaf.
5)At each end-track stopper is placed to absorb any impact and to hold the gate in the open or closed position.
6)Gates can be interlocked with entrance boom barrier as additional safety.
7)Gates can be manually operated in case of power failure.
8)Gates provide long life with minimum maintenance.
9)Available with hinged side for pedestrian use.
10)Various industrial gate designs available to suit clients choiceCompany Profile
JHR Smart Tech is specialized in production, sales and service for gates, doors, fences, balustrades and handrails etc. Adhering to management philosophy of "trustworthiness, cooperation, innovation, development", we have got much mature development in the past years. Our products are widely used for all fields by various styles, complete categories and exquisite workmanship. We can also make products or design according to customers' requirements and liking as we have much experience and strong design team in OEM&ODM with good results. JHR Smart Tech focuses on both domestic and global markets with over 80% for export marketing. In the future, we will put more effort in market and product development to reward our customers with more competitive products and creditable service. JHR Smart Tech is willing to make friends with all over world customers to create brilliance
together by our sincerity, honesty and win-win attitude.
Why Choose Us
Product Packaging
1. As most of our products are big size in package, we generally recommend shipment by FCL sea freight, and pack the goods by foam film and fix them tightly by rope in container to avoid damage during delivery. 2. If it's necessary to be shipped by LCL sea freight for small quantity of goods, we will make package strong enough by wooden crate or wooden case to protect the goods from any damage during delivery.FAQ1. How do I get the gate price?
For an estimate please advise height x width and quantity.2. I have an idea in mind for my gate design - can you help me execute it?
Yes. With 30 000+ completed projects - from corporate to private gate projects - we can help you find a design that suits your taste.
3. How long does it take for a full container 20/40 ft finished?
Our lead time to completion is usually 15-20work days once received advance payment and confirm drawings.
4. Is the connection hardware included?
Yes.
5. Is there a remote control?
Yes. The remote controller is available for the gate, and the active distance is less than 50 meters, also the gate can be controlled by an extra access control system.
6. Can it be controlled manually?
Yes. The gate is with clutch key and during the time of testing, repairing, maintenance or power failure, the clutch can be released and then it can be controlled manually.7. Can it come with a side door for pedestrians to pass?
Yes. Please kindly advise our sales the size of gate you need.8. Can I customize the logo
Yes, please kindly advise our sales the design of logo you need.9. What colors are available?
Standard colors are black, white, and grey most colors are available in gloss or matte finish. There is no upcharge for any of the standard colors. Custom colors are possible with certain limitations and are subject to an upcharge. Contact us for a free quote on any custom color.10. How should I install my gate?
Our aluminum gate is very easy to install, we will send you the installation instructions or guide you through communication tools. If you meet any problems during the installation process, please feel free to contact us.

---
